Vehicle Exploded View - APRILIA RSV4 1100 Racing Factory E4 ABS 2020 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

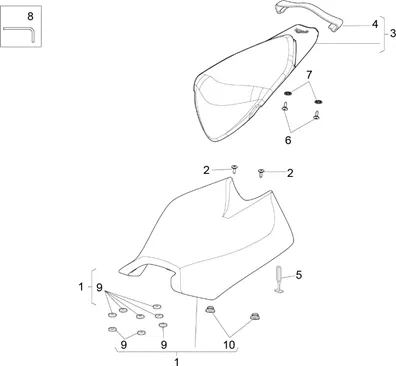

Carrosserie : 02.120 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/869/RSV4_1100_Racing_Factory_E4_ABS_2020_(EMEA-GSO)_02.120.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/8/7/img/40587.jpg)
1 |
SEAT PILOTE OEM APRILIA 1000-1100 RSV4 2009 > 2020-85883200A1 More informationQuantity required : 1 |
|||||||||
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
2 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/5/0/img/108950.jpg)
3 |
SEAT PASSENGER OEM PIAGGIO APRILIA 50-125 RS 2011 >, RSV-4 2009 >, 1100 TUONO 2015 >-85884300A1 More informationQuantity required : 1 |
|||||||||
|
3 |
SEAT PASSENGER OEM PIAGGIO APRILIA 50-125 RS 2011 >, RSV-4 2009 >, 1100 TUONO 2015 >-85884300A1 More informationQuantity required : 1 |
|||||||||
|
4 |
85884400A1 - COURROIE PASSAGER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.jpg)
5 |
SANGLE ELASTIC OEM PIAGGIO COMMON A LA RANGE-AP8120177 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/2/img/71872.jpg)
7 |
WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378 More informationQuantity required : 2 |
|||||||||
|
8 |
894195-TOOLS KEY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/9/1/img/62191.jpg)
9 |
BUFFER RUBBER DE SEAT OEM APRILIA 1000-1100 RSV4, TUONO-B043933 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/4/6/img/127146.jpg)
10 |
BUFFER DE SEAT OEM APRILIA 1000-1100 RSV4 2009 >-B043941 More informationQuantity required : 2 |
|||||||||
