Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

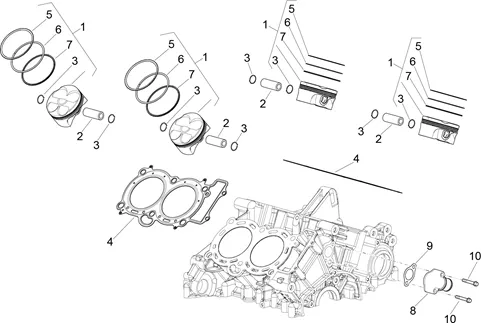

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/988/RSV4_1100_Factory_E5_ABS_2021_(EMEA)_03.15.png)
1 |
PISTON (A) OEM PIAGGIO 1100 RSV4 APRILIA 2019 >-1A014402AA More informationQuantity required : 4 |
||||||
|
1 |
PISTON (B) OEM PIAGGIO 1100 RSV4 APRILIA 2019 >-1A014402BB More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/2/9/img/145529.jpg)
2 |
SHAFT OF PISTON OEM PIAGGIO 660 RS, RSV4 APRILIA-2A000630 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/5/7/img/37657.jpg)
3 |
CLIPS/CIRCLIPS DE PISTON OEM APRILIA COMMON A LA RANGE-2A000450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/7/9/img/108579.jpg)
4 |
CYLINDER HEAD GASKET OEM PIAGGIO 1100 RSV4, TUONO APRILIA 2015 >-2A000370 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/4/5/img/139045.JPG)
5 |
PISTON RING COUP LAMP OEM PIAGGIO COMMON A LA RANGE APRILIA-2A000734 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/4/6/img/139046.JPG)
6 |
PISTON RING ETANCHEITE OEM PIAGGIO COMMON A LA RANGE APRILIA 1100/660-2A000735 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/4/7/img/139047.JPG)
7 |
PISTON RING RACLEUR OIL OEM PIAGGIO COMMON A LA RANGE APRILIA-2A000739 More informationQuantity required : 4 |
||||||
|
8 |
857126-FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/5/img/149125.jpg)
9 |
GASKET FITTING OEM PIAGGIO RSV4 APRILIA 2017 >-1A006321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
10 |
SCREW TH FLANGE (6X40) OEM PIAGGIO COMMON A LA RANGE-874550 More informationQuantity required : 2 |
