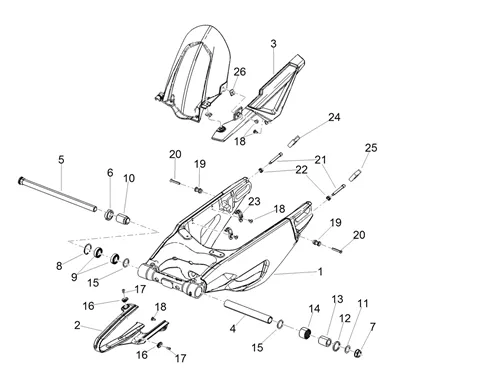

Chassis : 01.05 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/988/RSV4_1100_Factory_E5_ABS_2021_(EMEA)_01.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/9/5/2/img/175952.jpg)
1 |
OEM MOPED SWINGARM REAR OEM APRILIA RSV4 1100 E5 2021 >, TUONO 1100 E5 2021 >-2B006712 More informationQuantity required : 1 |
||||||
2 |
2B006921 CHAIN GUIDE PLATE More informationQuantity required : 1 |
||||||
|
3 |
2B006923 CHAIN COVERAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/7/0/img/46870.jpg)
4 |
SPACER INTERNE OEM MOPED SWINGARM OEM APRILIA COMMON A LA RANGE-AP8121570 More informationQuantity required : 1 |
||||||
|
5 |
858707-PIVOT FORK AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/5/8/img/68058.jpg)
6 |
NUT DE ARM DE LA SUSPENSION OEM PIAGGIO APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, 1000 TUONO, SRV 850/GILERA GP 800-648707 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
7 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
||||||
|
7 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
8 |
CLIPS/CIRCLIPS (D = 37) OEM PIAGGIO COMMON A LA RANGE-AP8121204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/9/5/img/41595.jpg)
9 |
BEARING (20X37X9) DE ARM DE SUSPENSION REAR OEM PIAGGIO APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD-890002 More informationQuantity required : 2 |
||||||
|
10 |
858708-BUSH DE REGLAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.jpg)
11 |
WASHER SPINDLE REAR WHEEL OEM APRILIA COMMON A LA RANGE-AP8125687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.jpg)
12 |
BUSH D'ETANCHEITE SPINDLE OEM MOPED SWINGARM SIDE LEFT OEM APRILIA CAPONORD 1200 2015 > 2017, DORSODURO 750-900-1200 2010 > 2017, RSV4 1000 2009 > 2018-AP8144005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/9/img/45829.jpg)
13 |
CAGE A AIGUILLES OEM MOPED SWINGARM OEM APRILIA RSV, CAPONORD, DORSODURO, SHIVER-AP8110078 More informationQuantity required : 1 |
||||||
|
14 |
858936-DOU. INT. ROD FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
15 |
O-RING 134 OEM MOPED SWINGARM OEM APRILIA CAPONORD, DORSODURO, RSV, SHIVER-AP8144048 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
16 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/4/img/71924.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152174 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
18 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/4/5/5/img/50455.jpg)
19 |
SPACER DE GUIDE CHAIN OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-AP8148824 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
20 |
SCREW BTR HEAD FRAISEE (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8150468 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/5/9/img/37859.jpg)
21 |
SCREW REGLAGE TENSION DE CHAIN OEM APRILIA 660 RS 2020 >/1000-1100 RSV4 2015 >-2B001920 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
22 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
|
23 |
2B006935 BRAKE HOSE FIXING BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/7/img/97077.jpg)
24 |
INSERT/GUIDE CHAIN RIGHT OEM PIAGGIO APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO-AP8144444 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/6/img/97076.jpg)
25 |
INSERT/GUIDE CHAIN RIGHT OEM PIAGGIO APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO-AP8144443 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
26 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
