Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

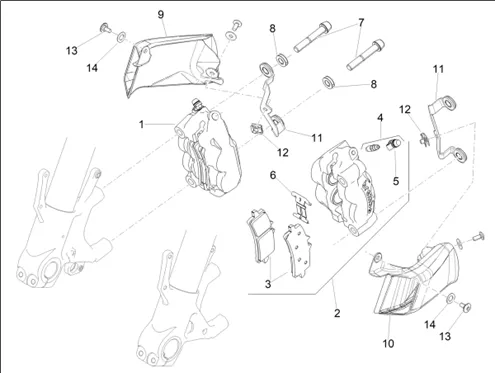

Système de freinage : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_06.02.png)
1 |
2B012883-Ã - TRIER OF BRAKE FRONT RIGHT More informationQuantity required : 1 |
||||||
|
2 |
2B012884-Ã - TRIER OF BRAKE FRONT LEFT More informationQuantity required : 1 |
||||||
|
3 |
2B012982-PAIRE DE BRAKE PADS More informationQuantity required : 2 |
||||||
|
4 |
AP8133824-SPURGO ARIA More informationQuantity required : 2 |
||||||
|
5 |
AP8113230-CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
6 |
2B013639-SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/8/img/156448.jpg)
7 |
SCREW BTR (10X1. 25X55) OEM PIAGGIO COMMON A LA RANGE-2B005564 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/9/3/img/145593.JPG)
8 |
SPACER 5MM CALIPER BRAKE FRONT OEM APRILIA 1000-1100 RSV4 2017 >-2B003247 More informationQuantity required : 4 |
||||||
|
9 |
2B005507-PRISE D'AIR More informationQuantity required : 1 |
||||||
|
10 |
2B005506-PRISE D'AIR More informationQuantity required : 1 |
||||||
|
11 |
2B005526-BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
14 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
