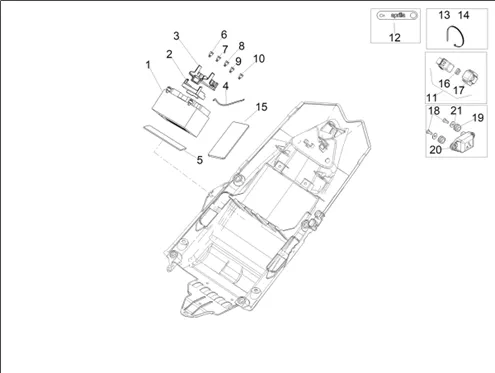

Dispositifs électriques : 11.03 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_11.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/7/3/img/171673_20260306165804.jpg)
1 |
BATTERY LITHIUM BSLI-04/BSLI-06 12V 4AH 48WH (134X65X92) OEM APRILIA 660 RS, TUAREG, TUONO 2020 >/1100 RSV4, TUONO 2021 >-2D000579 More informationQuantity required : 1 |
|||||||||
2 |
2B006798 SPACER BATTERY More informationQuantity required : 1 |
|||||||||
|
3 |
898252-FLANGE More informationQuantity required : 1 |
|||||||||
|
4 |
2D000158-CABLE BATTERY More informationQuantity required : 1 |
|||||||||
|
5 |
AP8144552-GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 2 |
|||||||||
|
6 |
CM225607-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
7 |
CM225710-FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
8 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 1 |
|||||||||
|
9 |
CM225720-FUSIBLE More informationQuantity required : 2 |
|||||||||
|
10 |
CM225725-FUSIBILE LITTELFUSE NATURALE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/3/img/67263.JPG)
11 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
|||||||||
|
12 |
860744-CLAMP EL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
13 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
|||||||||
|
14 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 5 |
|||||||||
|
15 |
AP8144553-GOMMA INF. APPOGGIO BATTERIA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
16 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
17 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
18 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 2 |
|||||||||
|
19 |
2B003367-GUIDE-CABLE More informationQuantity required : 2 |
|||||||||
|
20 |
2D000829-GPS CONTROL UNIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
21 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 2 |
|||||||||
