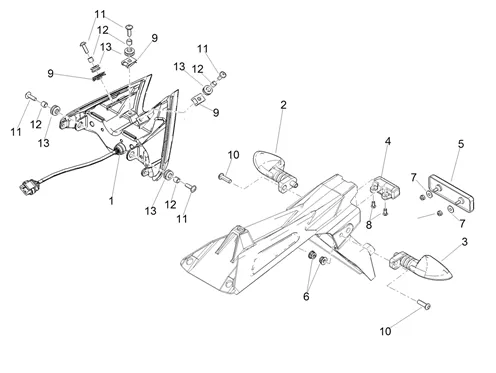

Feux - instruments : 08.03 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/987/RSV4_1100_E5_ABS_2021_(EMEA)_08.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/2/6/1/img/187261.jpg)
1 |
LAMP REAR OEM APRILIA 660-1100 RS, RSV4, TUONO 2021 >-2D000692 More informationQuantity required : 1 |
|||||||||
|
1 |
LAMP REAR OEM APRILIA 660-1100 RS, RSV4, TUONO 2021 >-2D000692 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/7/6/img/37876.jpg)
2 |
2D000137 - INDICATEUR DIRECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/9/8/8/img/203988.jpg)
3 |
FRONT RIGHT INDICATOR/REAR LEFT OEM APRILIA 660 RS, TUONO 2023 >-2B009501 More informationQuantity required : 1 |
|||||||||
3 |
2D000138 - INDICATEUR DIRECTION More informationQuantity required : 1 |
|||||||||
|
4 |
2D000284-LUMIERE PLATE IMMATR. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
5 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
7 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150501 More informationQuantity required : 2 |
|||||||||
|
8 |
2B002146-SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
11 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
12 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
13 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186 More informationQuantity required : 3 |
|||||||||
