Vehicle Exploded View - APRILIA RSV4 1100 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

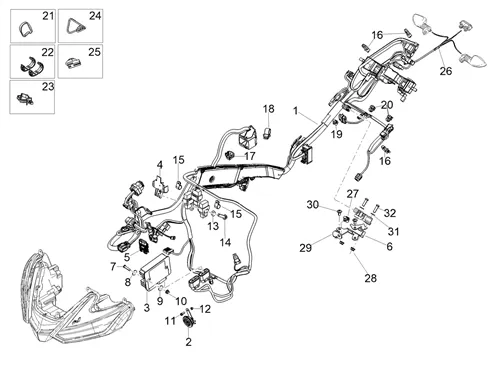

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/987/RSV4_1100_E5_ABS_2021_(EMEA)_11.01.png)
1 |
2D000595 MAIN HARNESS More informationQuantity required : 1 |
||||||
|
2 |
890979-HORN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
3 |
REGULATEUR DE TENSION OEM PIAGGIO 300-400-500-530 MP3 2021 >/APRILIA 660 2021 > 1100 RSV4-TUONO 2021 >-1A012332 More informationQuantity required : 1 |
||||||
|
4 |
858916-BRACKET DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/3/img/145823.jpg)
5 |
CONTROL/THROTTLE GRIP ELECTRONIC OEM APRILIA 1000-1100 RSV4 2017 >, 660 RS, TUONO 2020 >, 900 DORSODURO, SHIVER/MOTO GUZZI V100, V85 E4-2D000095 More informationQuantity required : 1 |
||||||
|
6 |
2B007807 LEVEL SENSOR CONNECTOR BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
8 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
9 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
11 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-2B002416 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/0/6/5/img/127065.jpg)
12 |
NUT (M10X1. 25) OEM PIAGGIO COMMON A LA RANGE-2B002634 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
13 |
WASHER EN T (6) OEM PIAGGIO COMMIN A LA RANGE-AP8121991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
14 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
|
15 |
CLAMP MOUNTING WIRING OU HOSE (D12) OEM PIAGGIO COMMON A LA RANGE-890721 More informationQuantity required : 1 |
||||||
|
16 |
AP8221310-GUIDE-CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
17 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
||||||
|
18 |
AP9100765-MOLLETTA RITEGNO CAVI More informationQuantity required : 1 |
||||||
|
19 |
890760-BRACKET More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
20 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
||||||
|
21 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
22 |
2B006134-BRACKET More informationQuantity required : 2 |
||||||
|
23 |
AP8221311-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
24 |
AP8221114-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
25 |
1D000129-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/7/1/img/171671.jpg)
26 |
WIRING HARNESS OF REAR LIGHT OEM APRILIA 660 RS, TUONO 2020 >-1100 RSV4, TUONO V4 2021 >-2D000627 More informationQuantity required : 1 |
||||||
|
27 |
890760-BRACKET More informationQuantity required : 1 |
||||||
|
28 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
29 |
2B002985-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.jpg)
30 |
SCREW FLANGE BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-GU98210612 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/4/img/132664.JPG)
31 |
WASHER PLATE (6, 4X13X1, 5) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-GU95005306 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
32 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
