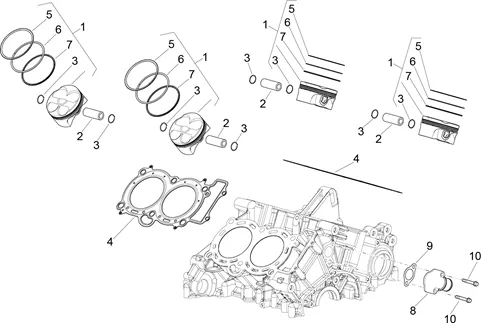

Moteur : 03.150 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/564/RSV4_1000_RR_Racer_Pack_2015_03.150.PNG)
1 |
CM267701-PISTON CAT. A More informationQuantity required : 4 |
||||||
|
1 |
CM267702 - PISTON CAT.B More informationQuantity required : 4 |
||||||
|
2 |
2A000489-SPINDLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/5/7/img/37657.jpg)
3 |
CLIPS/CIRCLIPS DE PISTON OEM APRILIA COMMON A LA RANGE-2A000450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/7/6/img/108576.jpg)
4 |
CYLINDER HEAD GASKET OEM PIAGGIO APRILIA 1000 RSV-4 RR 2015 >, RSV-4 RACING 2015 >-2A000356 More informationQuantity required : 2 |
||||||
|
5 |
899299-PISTON STOP RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/5/img/40295.jpg)
6 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO 2009 > 2016-857105 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/6/img/40296.jpg)
7 |
PISTON RING RACLEUR OIL OEM PIAGGIO APRILIA 1000 RSV-4, TUONO 2009 > 2016-857106 More informationQuantity required : 4 |
||||||
|
8 |
857126-FITTING More informationQuantity required : 1 |
||||||
|
9 |
857125-GASKET FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
10 |
SCREW TH FLANGE (6X40) OEM PIAGGIO COMMON A LA RANGE-874550 More informationQuantity required : 2 |
