Vehicle Exploded View - APRILIA RSV4 1000 RR Racer Pack 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

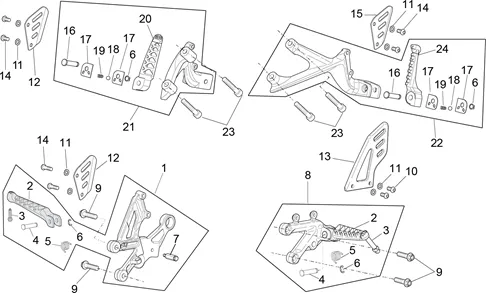

Chassis : 01.020 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/564/RSV4_1000_RR_Racer_Pack_2015_01.020.PNG)
1 |
858786-BRACKET REST-FEET DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/1/4/4/img/50144.jpg)
2 |
PAIRE FOOTREST PILOTE OEM PIAGGIO APRILIA RSV4, RS660 2013 >-AP81468626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/0/3/img/49103.jpg)
3 |
PIVOT FRICTION FOOTREST OEM APRILIA RSV4-AP8134955 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/2/img/73402.jpg)
4 |
PIVOT REST-FEET OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
5 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
6 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 2 |
||||||
|
7 |
GU05677730-PIVOT MOUNTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/2/5/img/50025.jpg)
8 |
BRACKET FOOTREST PILOTE LEFT OEM APRILIA 1000-1100 RSV4 2020 <-AP81465026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
9 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
11 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 8 |
||||||
|
12 |
858787-PROTECT. DTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/5/1/img/40551.jpg)
13 |
PLATINE DE PROTECTOR FOR FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 750-900 SHIVER, 1000 RSV-4, TUONO V4-858788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537 More informationQuantity required : 6 |
||||||
|
15 |
894201-PROTECTOR REP-FEET PASS. G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/1/img/109061.jpg)
16 |
PIVOT REST-FEET REAR OEM APRILIA 125 RS 2014 >-CM228402 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
17 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
18 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
19 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
|
20 |
AP8146616-PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
21 |
893996-REST-FEET PASSENGER More informationQuantity required : 1 |
||||||
|
22 |
893997-REST-FEET PASSENGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.jpg)
23 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/6/1/img/50061.jpg)
24 |
PASSENGER FOOTREST LEFT OEM PIAGGIO RSV4 APRILIA 2011 >-AP8146617 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
