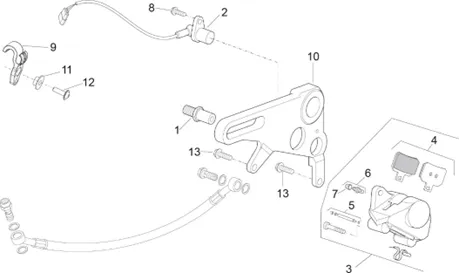

Vehicle Exploded View - APRILIA RSV4 1000 RR 2015 APRILIA

Système frein abs : 6040 PINCE FREIN ARRIERE
PINCE FREIN ARRIERE
Search
2B004790 - PIVOT

1
P2R reference P2R reference 214487
Maker reference Maker reference 2B004790

2B004790-PIVOT

More information

Quantity required : 1

898486 - PIVOT

1
P2R reference P2R reference 42963
Maker reference Maker reference 898486
Replaced by référence Replaced by référence 214487

898486 - PIVOT

More information

Quantity required : 1

SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350

2
P2R reference P2R reference 178660
Maker reference Maker reference 1D003350

SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350

More information

Quantity required : 1

B044357 - PINCE FREIN AR

3
P2R reference P2R reference 62249
Maker reference Maker reference B044357

B044357-PINCE BRAKE REAR

More information

Quantity required : 1

BRAKE PADS REAR OEM PIAGGIO FOR APRILIA 1000 RSV-4, TUONO, 1100 TUONO, 660 RS 2020 >, 660 TUONO 2020 >-893969

4
P2R reference P2R reference 42099
Maker reference Maker reference 893969

BRAKE PADS REAR OEM PIAGGIO FOR APRILIA 1000 RSV-4, TUONO, 1100 TUONO, 660 RS 2020 >, 660 TUONO 2020 >-893969

More information

Quantity required : 1

SPINDLE + GOUPILLE BRAKE CALIPER REAR OEM APRILIA COMMON A LA RANGE-AP8113752

5
P2R reference P2R reference 71321
Maker reference Maker reference AP8113752

SPINDLE + GOUPILLE BRAKE CALIPER REAR OEM APRILIA COMMON A LA RANGE-AP8113752

More information

Quantity required : 1

AP8113753 - PURGE AIR;

6
P2R reference P2R reference 71322
Maker reference Maker reference AP8113753

AP8113753-PURGE AIR

More information

Quantity required : 1

AP8113070 - CAPUCHON RENIFLARD

7
P2R reference P2R reference 71286
Maker reference Maker reference AP8113070

AP8113070-CAPUCHON RENIFLARD

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

8
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 1

858791 - PROTECTION TUYAU FREIN ARRIERE

9
P2R reference P2R reference 40552
Maker reference Maker reference 858791

858791-PROTECTOR HOSE BRAKE REAR

More information

Quantity required : 1

896896 - SUPPORT

10
P2R reference P2R reference 42636
Maker reference Maker reference 896896

896896-BRACKET

More information

Quantity required : 1

WASHER EN T (6X17X6) OEM PIAGGIO COMMON A LA RANGE-AP8221349

11
P2R reference P2R reference 72319
Maker reference Maker reference AP8221349

WASHER EN T (6X17X6) OEM PIAGGIO COMMON A LA RANGE-AP8221349

More information

Quantity required : 1

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

12
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 1

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

13
P2R reference P2R reference 71948
Maker reference Maker reference AP8152286

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

More information

Quantity required : 2
