Vehicle Exploded View - APRILIA RSV4 1000 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

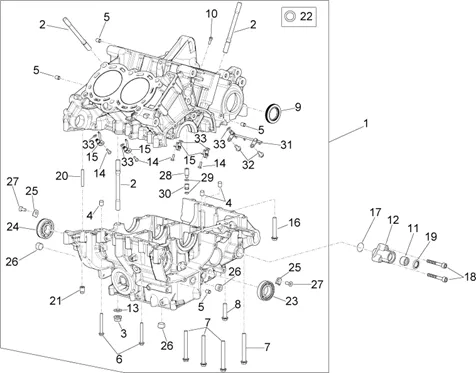

Moteur : 3040 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/563/RSV4_1000_RR_2015_3040.png)
1 |
Paire carter |
||||||
|
2 |
857087 - VIS SANS T?TE More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/6/img/42756.jpg)
3 |
NUT FLANGE (10X100) OEM PIAGGIO COMMUNU A LA RANGE-897434 More informationQuantity required : 6 |
||||||
|
4 |
857427-GOUPILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/6/img/66356.jpg)
5 |
BUSH SPACER DE CENTRAGE (8X10) OEM PIAGGIO COMMON A LA RANGE-411209 More informationQuantity required : 4 |
||||||
|
6 |
AP9100433-SCREW TE FLANG. M6X50 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/6/img/71956.jpg)
7 |
SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-AP8152294 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/1/2/img/40312.jpg)
9 |
OIL SEAL (30X47X7) OEM APRILIA 1000 RSV-4, TUONO-857128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
10 |
AP8152003 - VIS More informationQuantity required : 1 |
||||||
|
10 |
AP8152003 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/9/8/img/62498.jpg)
11 |
CAGE A AIGUILLES/ROULEAUX (12X8X12) OEM APRILIA COMMON A LA RANGE-B045224 More informationQuantity required : 1 |
||||||
|
12 |
857090-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/3/8/img/40338.jpg)
13 |
WASHER PLATE (10, 5X19X1. 6) OEM PIAGGIO COMUN A LA RANGE-857208 More informationQuantity required : 6 |
||||||
|
14 |
B046202-SCREW More informationQuantity required : 4 |
||||||
|
15 |
2A000293 - JET More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
16 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/9/img/40299.jpg)
17 |
O-RING (17. 12X2. 62) OEM APRILIA 1000-1100 RSV4-857109 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
18 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/1/1/img/40311.jpg)
19 |
OIL SEAL (12X22X6) DE CASING ENGINE OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1000 TUONO 2011 >, 1100 RSV-4 2019 >, 1100 TUONO 2015 >, 660 RSV, 660 TUONO 2021 >-1A017552 More informationQuantity required : 1 |
||||||
|
20 |
2A000295-SCREW WITHOUT HEAD More informationQuantity required : 1 |
||||||
|
21 |
857496-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/2/0/img/40320.jpg)
22 |
O-RING OEM APRILIA 1000-1100 RSV4 2009 >-857144 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/8/img/42758.jpg)
23 |
BEARING (25X47X12) DE CASING ENGINE OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-897436 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/7/img/42757.jpg)
24 |
BEARING (20X47X14) CASING OEM APRILIA RSV4 2009 >-897435 More informationQuantity required : 1 |
||||||
|
25 |
AP9150145-PIASTRINA RIT. CUSCIN. L More informationQuantity required : 2 |
||||||
|
26 |
974060-CAP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/3/img/71923.jpg)
27 |
SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152166 More informationQuantity required : 2 |
||||||
|
28 |
B045126-CLAPET SURETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
29 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 2 |
||||||
|
30 |
2A000363-JET More informationQuantity required : 1 |
||||||
|
31 |
2A000569-HOSE LUBRIFICATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
32 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/5/img/132205.jpg)
33 |
O-RING (6X1) OEM PIAGGIO COMMON A LA RANGE-GU90706009 More informationQuantity required : 5 |
