Vehicle Exploded View - APRILIA RSV4 1000 APRC R ABS 2013 USA 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

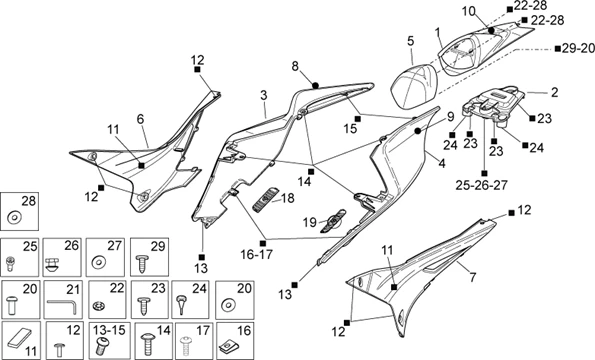

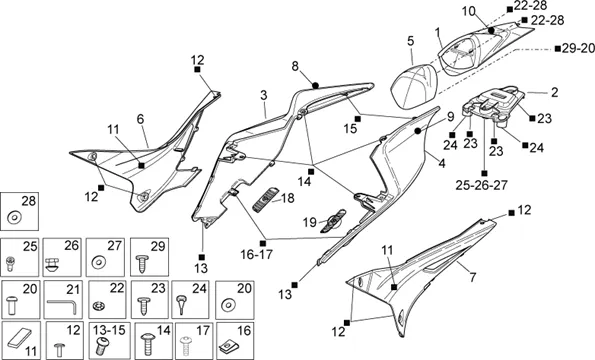

Chassis : 28.12 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/561/RSV4_1000_APRC_R_ABS_2013_USA_2014_28.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/2/img/40602.jpg)
1 |
COVER-SEAT BLACK OEM APRILIA 50-125 RS 2011 >-85883700XN6 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/3/img/40603.jpg)
2 |
BASE COVER-SEAT OEM APRILIA 50-125 RS 2011 >-858838 More informationQuantity required : 1 |
|||||||||
3 |
858835000XRC-TAIL D, RED More informationQuantity required : 1 |
|||||||||
|
3 |
85883500BM - QUEUE D, BLANC More informationQuantity required : 1 |
|||||||||
|
3 |
85883500NI-COVER REAR More informationQuantity required : 1 |
|||||||||
|
3 |
85883500XG6-TAIL D More informationQuantity required : 1 |
|||||||||
|
3 |
85883500XN2 - QUEUE D, NOIR More informationQuantity required : 2 |
|||||||||
|
4 |
858847000XRC-TAIL G, RED More informationQuantity required : 1 |
|||||||||
|
4 |
85884700BM - QUEUE G, BLANC More informationQuantity required : 1 |
|||||||||
|
4 |
85884700NI - COUVERCLE ARRIERE More informationQuantity required : 1 |
|||||||||
|
4 |
85884700XG6-TAIL G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/1/3/img/40613.jpg)
4 |
85884700XN2 - QUEUE G, NOIRE More informationQuantity required : 3 |
|||||||||
|
5 |
893112-COUSSIN More informationQuantity required : 1 |
|||||||||
|
6 |
858833-SIDE PANEL RIGHT More informationQuantity required : 1 |
|||||||||
|
7 |
858834-BODY PANEL G More informationQuantity required : 1 |
|||||||||
|
8 |
2H000211-DECAL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/5/0/img/42350.jpg)
8 |
STICKER/STICKER/GRAPHIC TAIL RIGHT OEM APRILIA 1000 RSV4 > 2009/2014-4895542 More informationQuantity required : 1 |
|||||||||
|
8 |
898593 - DECALCO More informationQuantity required : 1 |
|||||||||
|
8 |
B044383-DECAL More informationQuantity required : 1 |
|||||||||
|
8 |
B045779-DECAL More informationQuantity required : 1 |
|||||||||
|
9 |
2H000212-DECAL More informationQuantity required : 1 |
|||||||||
|
9 |
STICKER/STICKER/GRAPHIC TAIL LEFT OEM APRILIA 1000 RSV4 > 2009/2014-895543 More informationQuantity required : 1 |
|||||||||
|
9 |
898594-DECAL More informationQuantity required : 1 |
|||||||||
|
9 |
B044384-DECAL More informationQuantity required : 1 |
|||||||||
|
9 |
B045780-DECAL More informationQuantity required : 1 |
|||||||||
|
10 |
2H000213-DECAL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/3/8/img/42038.jpg)
10 |
DECO DESSUS BODY PANEL REAR OEM PIAGGIO APRILIA 50-125 RS 2011 >-893798 More informationQuantity required : 1 |
|||||||||
|
10 |
898595-DECAL More informationQuantity required : 1 |
|||||||||
|
10 |
B045781-DECAL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
11 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
12 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 6 |
|||||||||
|
13 |
AP8202058-RIVET EN PLASTIC BLACK More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
14 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
|
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
15 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
16 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
17 |
SCREW BTR HEAD BOMBEE (4X14) OEM PIAGGIO COMMON A LA RANGE-AP8121184 More informationQuantity required : 2 |
|||||||||
|
18 |
893108-GRILLE RIGHT More informationQuantity required : 1 |
|||||||||
|
19 |
893109-GRILLE LEFT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
20 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 1 |
|||||||||
|
21 |
894195-TOOLS KEY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
22 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
23 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
24 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
25 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/6/3/img/41963.jpg)
26 |
PIVOT MOUNTING OEM APRILIA COMMON A LA RANGE-893259 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
27 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
28 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
29 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 1 |
|||||||||
