Vehicle Exploded View - APRILIA RSV4 1000 APRC R ABS 2013 USA 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

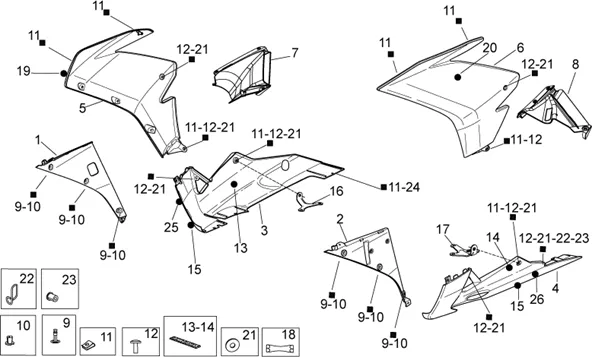

Chassis : 28.10 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/561/RSV4_1000_APRC_R_ABS_2013_USA_2014_28.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/7/9/img/40579.jpg)
1 |
FAIRING INNER RIGHT OEM APRILIA 50-125-RS, RSV4 2011 >-858828 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/8/0/img/40580.jpg)
2 |
FAIRING INNER LEFT OEM APRILIA 50-125-RS, RSV4 2011 >-858829 More informationQuantity required : 1 |
||||||
3 |
858825000XRC - CARENE INF.D.ROUGE More informationQuantity required : 1 |
||||||
|
3 |
85882500XN6 - CARENE INF.D NOIRE More informationQuantity required : 1 |
||||||
|
4 |
858826000XRC - CARENE INF.G.ROUGE More informationQuantity required : 1 |
||||||
|
4 |
85882600XN6 - CARENE INF.G NOIRE More informationQuantity required : 1 |
||||||
|
5 |
894107000XRC - CARENE LATERALE D.ROUGE More informationQuantity required : 1 |
||||||
|
5 |
89410700BM - CARENE LATERALE D., BLANC More informationQuantity required : 1 |
||||||
|
5 |
89410700NI-SIDE PANEL D More informationQuantity required : 1 |
||||||
|
5 |
89410700XG6 - CARENE LATERALE D More informationQuantity required : 1 |
||||||
|
6 |
897362000XRC - CARENE LATERALE G.ROUGE More informationQuantity required : 1 |
||||||
|
6 |
89736200BM - CARENE GAUCHE More informationQuantity required : 1 |
||||||
|
6 |
89736200NI - FLANC G More informationQuantity required : 1 |
||||||
|
6 |
89736200XG6 - CARENE LAT.G.P.J.F. More informationQuantity required : 1 |
||||||
|
7 |
EXTRACTEUR AIR RIGHT DE FRONT PANEL FRONT OEM PIAGGIO APRILIA 50-125 RS 2011 >, 1000 RSV-4-893979 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/1/0/7/img/42107.jpg)
8 |
EXTRACTEUR AIR LEFT DE FRONT PANEL FRONT OEM PIAGGIO APRILIA 50-125 RS 2011 >, 1000 RSV-4-893980 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
9 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
10 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/4/3/img/42443.jpg)
12 |
SCREW BTR (5X12) OEM APRILIA 660 RS/1000-1100 RSV4 2020 <-896175 More informationQuantity required : 6 |
||||||
|
13 |
894196-PROTECTOR BR? LURE More informationQuantity required : 1 |
||||||
|
14 |
894197-PROTECTOR BR? LURE More informationQuantity required : 1 |
||||||
|
15 |
2H000210-DECAL More informationQuantity required : 2 |
||||||
|
15 |
DECO DE SPOILER OEM PIAGGIO APRILIA 1000 RSV-4-895266 More informationQuantity required : 2 |
||||||
|
15 |
B045777 - DECALCO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/5/img/42385.jpg)
16 |
FLANGE RIGHT FRONT MUDGUARD OEM APRILIA 1000-1100 RSV4 2015 > 2020-895909 More informationQuantity required : 1 |
||||||
|
17 |
FLANGE LEFT DE FAIRING OEM PIAGGIO APRILIA 1000-1100 RSV-4-895910 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/8/4/9/img/41849.jpg)
18 |
SPACER CARROSSERIE OEM PIAGGIO COMMON A LAGAMME-890964 More informationQuantity required : 1 |
||||||
|
19 |
2H000208-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/9/2/img/42992.jpg)
19 |
DECO SIDE PANEL FRONT RIGHT OEM PIAGGIO APRILIA 1000 RSV-4-898551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/6/3/img/62263.jpg)
19 |
STICKER/STICKER/GRAPHIC FAIRING RIGHT OEM APRILIA RSV4 1000 2012 JAUNE-B044381 More informationQuantity required : 1 |
||||||
|
19 |
B045775-DECAL More informationQuantity required : 1 |
||||||
|
20 |
2H000209-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/9/3/img/42993.jpg)
20 |
STICKER/STICKER/GRAPHIC SIDE PANEL FRONT LEFT OEM PIAGGIO APRILIA 1000 RSV-4-898552 More informationQuantity required : 1 |
||||||
|
20 |
B044382-DECAL More informationQuantity required : 1 |
||||||
|
20 |
B045776 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
21 |
WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
22 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
23 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
24 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915 More informationQuantity required : 1 |
||||||
|
25 |
2H000485-DECAL More informationQuantity required : 1 |
||||||
|
26 |
2H000486-DECAL More informationQuantity required : 1 |
