Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

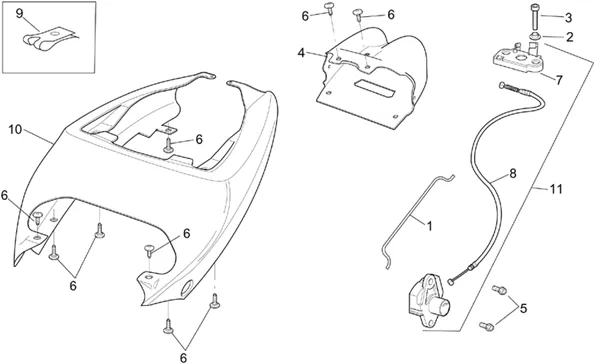

Chassis : 28.22 CARR. ARRIÉRE - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_28.22.PNG)
1 |
AP8134396-ROD SUPP. TANK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
2 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
3 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
|||||||||
|
4 |
AP8149289 - Q. PORTE-FEU NOIR; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
5 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 10 |
|||||||||
|
7 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
|||||||||
|
8 |
AP8102914-CABLE LOCK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 8 |
|||||||||
|
10 |
AP8148850 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8149290 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8149941 - QUEUE CAR.P.J. FL.; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8149959 - QUEUE, HOT RED+DEC.; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8158026 - QUEUE, E.BLEU+DEC; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8158578 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8158594 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
Queue, noir; |
|||||||||
|
10 |
AP8158629 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
Queue, noir; |
|||||||||
|
10 |
AP8168147 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
11 |
AP8102911-LOCK SEAT CPL. More informationQuantity required : 1 |
|||||||||
