Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

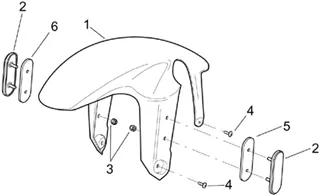

Chassis : 28.13 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_28.13.PNG)
1 |
Garde-boue AV carb.; |
|||||||||
|
1 |
AP8126835 - G-BOUE AV.V.R. FLUO; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8126854 - GARDE-BOUE AV CARB.; More informationQuantity required : 1 |
|||||||||
|
1 |
G-boue AV.v.r. fluo; |
|||||||||
|
1 |
Garde-boue av.p.h.r.; |
|||||||||
|
1 |
AP8126927 - GARDE-BOUE AV.P.H.R.; More informationQuantity required : 1 |
|||||||||
|
1 |
Garde-boue av.p.b.é.; |
|||||||||
|
1 |
AP8126931 - GARDE-BOUE AV.P.B.E.; More informationQuantity required : 1 |
|||||||||
|
1 |
Garde-boue AV noir; |
|||||||||
|
1 |
AP8126980 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156013 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156014 - GARDE-BOUE AV CARB.; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
2 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
4 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
|||||||||
|
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
4 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
|
5 |
AP8148589-BRACKET CATAD. AV. G. More informationQuantity required : 1 |
|||||||||
|
6 |
AP8148588 - SUPPORT CATAD.AV.D.; More informationQuantity required : 1 |
|||||||||
