Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 2019 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

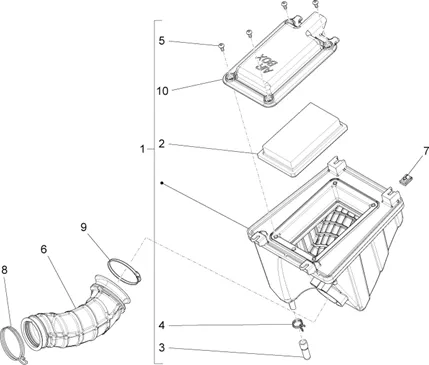

Moteur : 03.050 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/865/RS4_50_2T_E4_2018_2019_(APAC_EMEA)_03.050.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/9/5/img/70295.jpg)
1 |
HOUSING AIR FILTER OEM PIAGGIO APRILIA 50 RS4 2011 > 2019-867175 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/0/img/69840_20260205164724.jpg)
2 |
ELEMENT/MOUSSE DE AIR FILTER OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >, 125 RX, SX 2018 >-861130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
3 |
CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
4 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
5 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/6/4/img/70164.jpg)
6 |
SLEEVE INTAKE ENTRE CARBURETTOR ET AIR FILTER OEM PIAGGIO APRILIA 50 RS-4 2011 >-866160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
8 |
CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
9 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
|
10 |
HOUSING AIR FILTER OEM PIAGGIO APRILIA 50 RS4 2011 > 2019-867175 More informationQuantity required : 1 |
