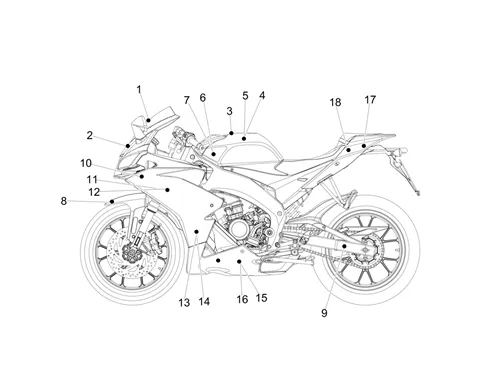

Carrosserie : 02.190 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/865/RS4_50_2T_E4_2018_2019_(APAC_EMEA)_02.190.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/2/4/img/142524.jpg)
1 |
STICKER/STICKER/GRAPHIC HEAD OF FORK (APRILIA) OEM PIAGGIO 50-125 RS APRILIA 2018 >-2H001548 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/2/5/img/142525.jpg)
2 |
STICKER/STICKER/GRAPHIC HEAD OF FORK (DRAPEAU ITALIEN) OEM PIAGGIO 50-125 RS APRILIA 2018 >-2H001549 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/7/9/9/img/108799.jpg)
3 |
STICKER/STICKER/GRAPHIC OEM APRILIA COMMON A LA RANGE-2H000874 More informationQuantity required : 1 |
||||||
4 |
2H001565-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/2/6/img/142526.jpg)
4 |
STICKER/STICKER/GRAPHIC TANK RIGHT (APRILIA RACING) OEM PIAGGIO 50-125 RS 2017 >-2H001550 More informationQuantity required : 1 |
||||||
|
5 |
2H001566-DECAL More informationQuantity required : 1 |
||||||
|
5 |
2H001551-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/3/1/img/149431.jpg)
6 |
STICKER/STICKER/GRAPHIC RIGHT DE TANK OEM APRILIA 50-125 RS 2018-2H002101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/4/3/img/142543.jpg)
6 |
STICKER/STICKER/KIT DECORS TANK LEFT OEM APRILIA RS 50-125 SILVER SPEED 2018 >-2H001567 More informationQuantity required : 1 |
||||||
|
7 |
2H001568-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/3/2/img/149432.jpg)
7 |
STICKER/STICKER/GRAPHIC LEFT DE TANK OEM APRILIA 50-125 RS 2018-2H002102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/8/4/img/145884.jpg)
8 |
STICKER/STICKER/GRAPHIC FRONT MUDGUARD APRILIA RACING OEM PIAGGIO COMMON A LA RANGE APRILIA-2H001617 More informationQuantity required : 1 |
||||||
|
9 |
B043808-DECAL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/4/5/img/142545.jpg)
10 |
STICKER/STICKER/GRAPHIC FAIRING LATERAL RS OEM PIAGGIO 50-125 RS APRILIA 2018 >-2H001569 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/2/img/142532.jpg)
10 |
STICKER/STICKER/GRAPHIC " RS " OEM PIAGGIO APRILIA 50-125 RS4 2017 >-2H001556 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/3/img/142533.jpg)
11 |
STICKER/STICKER/GRAPHIC FAIRING RIGHT (A) OEM PIAGGIO 50-125 RS APRILIA 2017 >-2H001557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/4/img/142534.jpg)
12 |
STICKER/STICKER/GRAPHIC FAIRING LEFT A OEM PIAGGIO 50-125 RS 2017 >-2H001558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/5/img/142535.jpg)
13 |
STICKER/STICKER/GRAPHIC FAIRING RIGHT (BE A RACER) OEM PIAGGIO 50-125 RS 2017 >-2H001559 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/6/img/142536.jpg)
14 |
STICKER/STICKER/GRAPHIC FAIRING LEFT (BE A RACER) OEM PIAGGIO 50-125 RS APRILIA 2017 >-2H001560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/7/img/142537.jpg)
15 |
STICKER/STICKER/GRAPHIC FAIRING RIGHT APRILIA RACING OEM PIAGGIO 50-125 RS 2017 >-2H001561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/8/img/142538.jpg)
16 |
STICKER/STICKER/GRAPHIC FAIRING LEFT APRILIA RACING OEM PIAGGIO 50-125 RS 2017 >-2H001562 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/9/4/4/img/151944.jpg)
17 |
STICKER/STICKER/GRAPHIC TAIL OEM PIAGGIO 50 RS APRILIA 2018 >-2H002454 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/9/4/5/img/151945.JPG)
17 |
2H002455-DECAL APRILIA 50 RS-4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/3/9/img/142539.jpg)
18 |
STICKER/STICKER/GRAPHIC MUD FLAP (RS) OEM PIAGGIO 50-125 RS APRILIA-2H001563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/4/6/img/142546.jpg)
18 |
STICKER/STICKER/GRAPHIC DE MUD FLAP REAR OEM APRILIA 50-125 RS 2018 >-2H001570 More informationQuantity required : 1 |
