Vehicle Exploded View - APRILIA RS 125 RS4 125 4T 2014-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

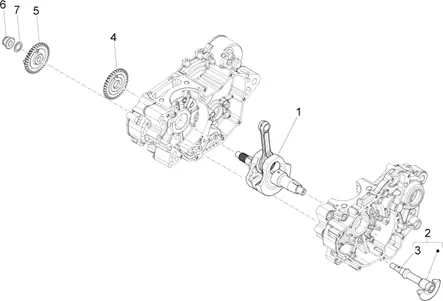

Moteur : 03.160 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/752/RS4_125_4T_2014-2016_03.160.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/9/2/img/70892.jpg)
1 |
VILEBREQUIN OEM PIAGGIO APRILIA 125 RS, TUONO-8999175001 More informationQuantity required : 1 |
||||||
1 |
8999175002-SHAFT ENGINE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/5/4/img/70354.jpg)
2 |
CONTRE SHAFT VILEBREQUIN OEM APRILIA 125 RS, RX, SX, TUONO 2011 >-871342 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/3/img/66183.jpg)
3 |
GUIDE OEM PIAGGIO COMMON A LA RANGE-287959 More informationQuantity required : 1 |
||||||
|
4 |
8714465001-GEAR More informationQuantity required : 1 |
||||||
|
4 |
8714465002-GEAR More informationQuantity required : 1 |
||||||
|
5 |
8711565001-GEAR More informationQuantity required : 1 |
||||||
|
5 |
8711565002-GEAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/4/img/69514.jpg)
6 |
NUT (10X1. 50) SERRAGE SPROCKET SHAFT EQUILIBRAGE OEM PIAGGIO APRILIA 50-125 RS, 125 RX, SX-847275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
7 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
