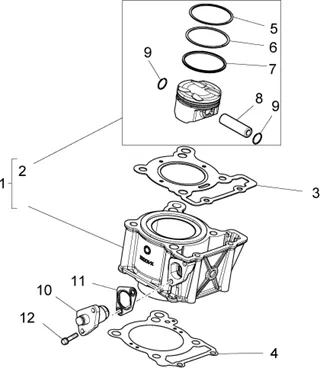

Moteur : 03.150 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/752/RS4_125_4T_2014-2016_03.150.PNG)
1 |
CYLINDER PISTON OEM PIAGGIO APRILIA 125 RS4 2011 >-8993145 More informationQuantity required : 1 |
||||||
|
2 |
1A0075210D - PISTON CPL. More informationQuantity required : 1 |
||||||
|
2 |
PISTON (M) OEM PIAGGIO APRILIA 125 RS 2011 >, TUONO 2017 >, SX, RX 2018 >-1A0075210A More informationQuantity required : 1 |
||||||
|
2 |
1A0075210B - PISTON CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/4/8/3/img/145483.jpg)
2 |
PISTON (O) OEM PIAGGIO APRILIA 125 RS, RX, SX 2011 > 2020-1A0075210C More informationQuantity required : 1 |
||||||
|
2 |
1A0075210B - PISTON CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/7/img/68797.jpg)
3 |
CYLINDER HEAD GASKET OEM PIAGGIO APRILIA 125 RS 4T 2011 > 2016, SCARABEO LIGHT 2009 > 2012-82893R More informationQuantity required : 1 |
||||||
|
4 |
CYLINDER BASE GASKET DE CYLINDER (0, 3 MM) OEM PIAGGIO APRILIA 50-125 RS, TUONO 2016 <-CM157501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/2/3/img/146223.jpg)
4 |
CYLINDER BASE GASKET DE CYLINDER (0, 4 MM) OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO 2017 >-CM278202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/2/4/img/146224.jpg)
4 |
CYLINDER BASE GASKET DE CYLINDER (0, 5 MM) OEM PIAGGIO APRILIA 125 RS, TUONO-CM278203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/7/img/70437.jpg)
5 |
PISTON RING DE LAMP OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO, SCARABEO LIGHT-872692 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/8/img/70438.jpg)
6 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO, SCARABEO LIGHT-872693 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/9/img/70439.jpg)
7 |
PISTON RING RACLEUR OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO, SCARABEO LIGHT-872694 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/6/7/img/70467.jpg)
8 |
SPINDLE PISTON OEM PIAGGIO 125 APRILIA RS, RX, SX, TUONO 2011 >-873173 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/5/img/146185.jpg)
9 |
CLIPS/CIRCLIPS SHAFT OF PISTON OEM APRILIA 125 RS, RX, SX 2011 >-1A007518 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
10 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
10 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
11 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
