Vehicle Exploded View - APRILIA RS 125 RS4 125 4T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

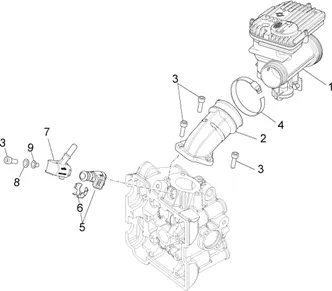

Moteur : 03.060 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.060.PNG)
1 |
CM227201 - CORPS A PAPILLON More informationQuantity required : 1 |
||||||
|
2 |
897800-SLEEVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
3 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 4 |
||||||
|
4 |
JC13102X05300-CLAMP SERR. TUBE More informationQuantity required : 2 |
||||||
|
5 |
890225-INJECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/0/3/img/39103.jpg)
6 |
CLIPS DE RETENU INJECTEUR OEM PIAGGIO COMMON A LA RANGE-849898 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/0/0/5/img/177005.jpg)
7 |
BRACKET D'INJECTEUR OEM PIAGGIO 125 RX, SX 2018 > RS 2021 > APIRILIA-1A011529 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
8 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
|
9 |
932108-CAP More informationQuantity required : 1 |
