Vehicle Exploded View - APRILIA RS 125 RS4 125 4T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

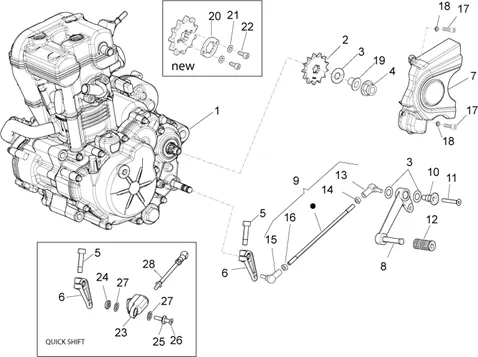

Moteur : 03.010 MOTEUR-GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.010.PNG)
1 |
CM2273025 - MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
B044213-SPROCKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/1/6/img/62216.jpg)
2 |
SPROCKET 13 TEETH OEM PIAGGIO 125 RS, TUONO APRILIA 2017 >-B044264 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/9/0/8/img/39908.jpg)
3 |
WASHER SPRING 16X34X1. 5) OEM PIAGGIO COMMON A LA RANGE-854909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/2/img/65602.JPG)
4 |
NUT TH M12 X1. 25 OEM PIAGGIO APRILIA COMMON A LA RANGE-021212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
5 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/8/1/img/62181.jpg)
6 |
LEVER SPINDLE BOX OF VITESSES OEM APRILIA 125 RS 2011 >-B043826 More informationQuantity required : 1 |
||||||
|
7 |
898059-COVER CASING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/6/img/72336.jpg)
8 |
SELECTEUR/LEVER DE SPEED OEM PIAGGIO 50 RS 1999 > 2005, 125 RS4 2011 >, 50 TUONO 2003 > 2004, 125 TUONO 2017 >-AP8235011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/3/4/img/70134.jpg)
9 |
ROD OF CONTROL BOX OF SPEED OEM PIAGGIO APRILIA 125 RS 2011 >-865650 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/8/8/img/70188.jpg)
10 |
BUSH DE PEDAL OF BRAKE/SELECTEUR OEM PIAGGIO APRILIA 50-125 RS, TUONO 2011 >-866514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
11 |
SCREW BTR HEAD FRAISEE (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8150468 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
12 |
RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
13 |
ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
14 |
NUT ROD OF SELECTEUR OEM APRILIA COMMON A LA RANGE-AP8152138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
15 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
17 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
18 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 2 |
||||||
|
19 |
B044212-BUSH EN " T " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/1/img/64741.jpg)
20 |
WASHER DE SECURITE/PLATE MAINTIEN DE SPROCKET OEM PIAGGIO 50 GILERA RCR, SMT 1999 > 2005/DERBI SENDA 2000 > 2010-00H02810421 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/1/img/71851.jpg)
21 |
WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/7/img/63567.jpg)
22 |
SCREW BTR (5X10) MOUNTING SPROCKET SORTIE DE BOX OEM PIAGGIO APRILIA RS 50-125 2006 > 2018, RX-SX 2006 > 2016-00000004510 More informationQuantity required : 2 |
||||||
|
23 |
B043834-DISPOSITIF QUICK SHIFT More informationQuantity required : 1 |
||||||
|
24 |
898133-BUSH More informationQuantity required : 1 |
||||||
|
25 |
898134-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/5/9/img/42959.jpg)
26 |
SCREW BTR HEAD FRAISEE (6X35) OEM PIAGGIO COMMON A LA RANGE-898463 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/5/img/56835.jpg)
27 |
O-RING (115) OEM PIAGGIO COMMON A LA RANGE-AP8220177 More informationQuantity required : 3 |
||||||
|
28 |
B044008-GEAR SHIFT ROD-RS4 125 More informationQuantity required : 1 |
