Vehicle Exploded View - APRILIA RS 660 4T Factory E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

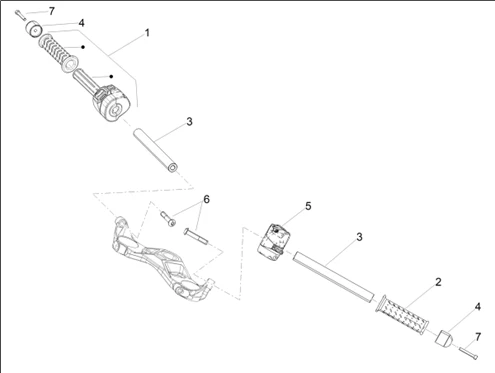

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_07.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/3/img/145823.jpg)
1 |
CONTROL/THROTTLE GRIP ELECTRONIC OEM APRILIA 1000-1100 RSV4 2017 >, 660 RS, TUONO 2020 >, 900 DORSODURO, SHIVER/MOTO GUZZI V100, V85 E4-2D000095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/7/9/img/212779.JPG)
2 |
2B011350-GRIP LEFT More informationQuantity required : 1 |
||||||
3 |
2B013029-HALF HANDLEBAR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/7/1/img/70171_20260526172834.jpg)
4 |
HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS4 2011 >, 50-125 TUONO 2017 > BLACK-866233 More informationQuantity required : 2 |
||||||
|
5 |
2D0007819-CONTROL HANDLEBAR G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/5/7/1/img/177571.jpg)
6 |
SCREW TORX (10X55) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-2B007275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/4/8/6/img/177486.jpg)
7 |
SCREW BTR (5X50) OEM PIAGGIO COMMON A LA RANGE-2B002580 More informationQuantity required : 2 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_20260622123854.PNG)
-
01.01 Châssis/coque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_01.01.png)
-
01.02 Repose-Pieds
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_01.02.png)
-
01.03 Béquille
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_01.03.png)
-
01.05 Fourche arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_01.05.png)
-
02.03 Garde-boue Av.-Embasement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.03.png)
-
02.04 Avant carène
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.04.png)
-
02.08 Carène lateral
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.08.png)
-
02.09 Couvre-réservoir
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.09.png)
-
02.10 Carrosserie centrale
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.10.png)
-
02.12 Selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.12.png)
-
02.13 Logement sous-selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.13.png)
-
02.14 Carrosserie posterieure
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.14.png)
-
02.15 Garde-boue Ar.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.15.png)
-
02.17 Serrures
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.17.png)
-
02.18 Plaquettes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.18.png)
-
02.19 Décalco
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.19.png)
-
03.01 Moteur-Groupe complementaire
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.01.png)
-
03.03 Carters I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.03.png)
-
03.05 Corps filtre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.05.png)
-
03.06 Corps à papillon
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.06.png)
-
03.09 Couvercle culasse
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.09.png)
-
03.10 Culasse - soupapes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.10.png)
-
03.11 Plaquette
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.11.png)
-
03.12 Distribution
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.12.png)
-
03.15 Cylindre - Piston
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.15.png)
-
03.16 Vilebrequin
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.16.png)
-
03.17 Boîte de vitesses / Selecteur / Desmodromique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.17.png)
-
03.18 Boîte de vitesses - engrenages
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.18.png)
-
03.19 Lubrification
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.19.png)
-
03.21 Pompe à eau
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.21.png)
-
03.22 Couvercle embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.22.png)
-
03.27 Carter de volant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.27.png)
-
03.30 Volant magnétique / Allumage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.30.png)
-
03.32 Air secondaire
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.32.png)
-
03.33 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_03.33.png)
-
04.01 Fourche Av. Ohlins
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_04.01.png)
-
04.08 Amortisseur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_04.08.png)
-
05.01 Roue avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_05.01.png)
-
05.02 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_05.02.png)
-
06.01 Maît. cyl. frein AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_06.01.png)
-
06.02 Pince frein avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_06.02.png)
-
06.03 Pompe frein arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_06.03.png)
-
06.04 Pince frein arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_06.04.png)
-
06.05 Système frein ABS
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_06.05.png)
-
07.01 Direction
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_07.01.png)
-

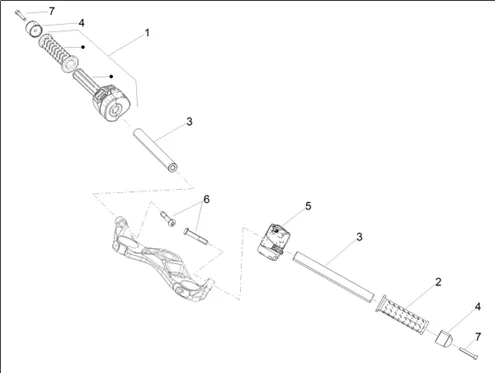

07.02 Guidon - Commandes
