Vehicle Exploded View - APRILIA RS 660 4T Factory E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

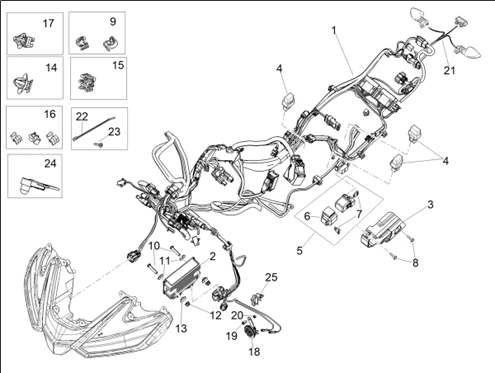

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_11.01.png)
1 |
2D000881-MAIN HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
2 |
REGULATEUR DE TENSION OEM PIAGGIO 300-400-500-530 MP3 2021 >/APRILIA 660 2021 > 1100 RSV4-TUONO 2021 >-1A012332 More informationQuantity required : 1 |
||||||
|
3 |
2B006603 COVER STARTER RELAY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
4 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/3/img/67263.JPG)
5 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
||||||
|
6 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
||||||
|
6 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
7 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
9 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
11 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
13 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
|
14 |
890760-BRACKET More informationQuantity required : 1 |
||||||
|
15 |
2D000348-CONNECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
16 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
||||||
|
17 |
1D000129-GASKET More informationQuantity required : 1 |
||||||
|
18 |
863339-HORN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
19 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/7/1/img/171671.jpg)
21 |
WIRING HARNESS OF REAR LIGHT OEM APRILIA 660 RS, TUONO 2020 >-1100 RSV4, TUONO V4 2021 >-2D000627 More informationQuantity required : 1 |
||||||
|
22 |
2D000676 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
23 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
24 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
|
25 |
AP8221310-GUIDE-CABLE More informationQuantity required : 1 |
