Vehicle Exploded View - APRILIA RS 660 4T 8V E5 ABS 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

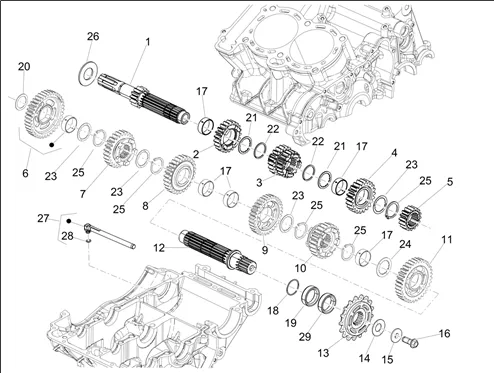

Moteur : 03.18 BOÎTE DE VITESSES - ENGRENAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1023/RS_660_4T_8V_E5_ABS_2022_(EMEA)_03.18.png)
1 |
1A019499 GEAR DRIVE SHAFT WITH IP More informationQuantity required : 1 |
||||||
|
2 |
1A018886 DRIVER SHAFT 5 SPEED GEAR More informationQuantity required : 1 |
||||||
|
3 |
1A018890 DRIVER SHAFT SLIDING 3 4 GEAR More informationQuantity required : 1 |
||||||
|
4 |
1A018887 - DRIVER SHAFT 6 SPEED GEAR More informationQuantity required : 1 |
||||||
|
5 |
1A012118 SPROCKET 2EME SPEED More informationQuantity required : 1 |
||||||
|
6 |
1A016957 SPROCKET 1. ERE More informationQuantity required : 1 |
||||||
|
7 |
1A018889 DRIVER SHAFT 5 SPEED GEAR More informationQuantity required : 1 |
||||||
|
8 |
1A018888 4TH SPEED GEAR More informationQuantity required : 1 |
||||||
|
9 |
1A019882 3RD SPEED GEAR More informationQuantity required : 1 |
||||||
|
10 |
1A018086 MODELLO ZANG More informationQuantity required : 1 |
||||||
|
11 |
1A018085 2ND SPEED GEAR More informationQuantity required : 1 |
||||||
|
12 |
1A012117 SHAFT SECONDAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/9/0/img/171590.jpg)
13 |
SPROCKET 17 TEETH OEM APRILIA 660 RS, TUONO FACTORY 2020 >-2B006795 More informationQuantity required : 1 |
||||||
|
14 |
2B002193-WASHER More informationQuantity required : 1 |
||||||
|
15 |
2B002191-BUSH EN " T " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/4/5/img/62045.jpg)
16 |
SCREW FLANGE TH (10X25) OEM PIAGGIO COMMON A LA RANGE-B043047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/8/img/69598.jpg)
17 |
BUSH MOBILE BOX OF SPEED OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-849308 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/1/2/img/41312.jpg)
18 |
O-RING SORTIE DE BOX OEM APRILIA CAPONORD, DORSODURO, SHIVER, 660 RS-871901 More informationQuantity required : 1 |
||||||
|
19 |
974558-SPACER More informationQuantity required : 1 |
||||||
|
20 |
1A017027 WASHER D'EPAULEMENT More informationQuantity required : 1 |
||||||
|
21 |
849424-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/7/2/img/39072.JPG)
22 |
ANNEAU ELASTIC DE BOX SPEED (27X1. 5) OEM APRILIA COMMON A LA RANGE-849426 More informationQuantity required : 2 |
||||||
|
23 |
849310-WASHER More informationQuantity required : 4 |
||||||
|
24 |
849309-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/6/8/img/39068.jpg)
25 |
ANNEAU ELASTIC DE BOX SPEED (27. 5X2) OEM APRILIA COMMON A LA RANGE-849311 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.jpg)
26 |
WASHER CLUTCH OEM APRILIA COMMON A LA RANGE-974320 More informationQuantity required : 1 |
||||||
|
27 |
1A016199 HOSE DE LUBRIFICATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
28 |
O-RING BOX OF SPEED OU WATER PUMP OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO THREE-WHEELER APE-224035 More informationQuantity required : 1 |
||||||
|
29 |
2B006792 SPROCKET SPACER More informationQuantity required : 1 |
