Vehicle Exploded View - APRILIA RS 660 4T 8V E5 ABS 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

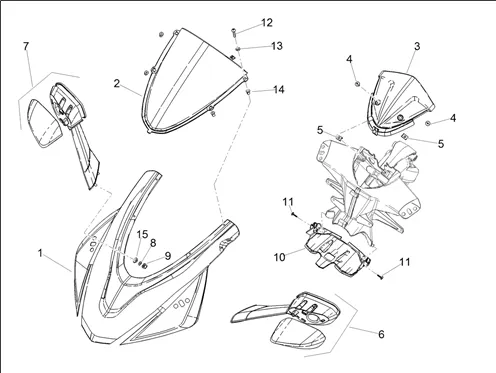

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1023/RS_660_4T_8V_E5_ABS_2022_(EMEA)_02.04.png)
1 |
2B006629000Q4-SHIELD More informationQuantity required : 1 |
||||||
|
1 |
2B006629000XDA SHIELD More informationQuantity required : 1 |
||||||
|
1 |
2B006629000L01 SHIELD More informationQuantity required : 1 |
||||||
|
1 |
2B006629 FRONT FAIRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/3/img/178323.jpg)
1 |
FRONT PANEL FRONT (WITHOUT DECORS) OEM APRILIA 660 RS 2020 >-APEX BLACK > 2020/2022 <-2B006629000XHL More informationQuantity required : 1 |
||||||
|
2 |
2B007755-WINDSHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/4/img/178324.jpg)
2 |
COUPOLE FAIRING FRONT OEM APRILIA 660 RS 2020 >-2B006631 More informationQuantity required : 1 |
||||||
|
3 |
2B007205 DASHBOARD UPPER COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
4 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/5/img/178325.jpg)
6 |
LEFT MIRROR OEM APRILIA 660 RS 2020 > 2022-2B008413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/6/img/178326.jpg)
7 |
RIGHT MIRROR OEM APRILIA 660 RS 2020 > 2022-2B008412 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
8 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
9 |
NUT FLANGE (D6) OEM PIAGGIO COMMON A LA RANGE-AP8150506 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/7/img/178327.jpg)
10 |
2B006628 - FERMETURE INFERIEURE FRONTALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
12 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
13 |
WASHER NYLON/PLASTIQUE (D4) OEM PIAGGIO COMMON A LA RANGE-895916 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
14 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 4 |
||||||
|
15 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 2 |
