Vehicle Exploded View - APRILIA RS 660 4T 8V E5 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

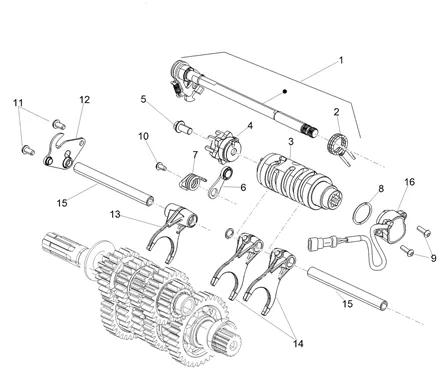

Moteur : 03.17 BOÎTE DE VITESSES / SELECTEUR / DESMODROMIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/961/RS_660_4T_8V_E5_ABS_2020_(EMEA)_03.17.png)
1 |
|
|||||||||
|
2 |
|
|||||||||
|
3 |
|
|||||||||
|
4 |
1A013663 SELECTOR GEAR DRUM More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
5 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
|||||||||
|
6 |
1A012987 GEAR FIXING WITH I. P. More informationQuantity required : 1 |
|||||||||
|
7 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/9/img/69759.jpg)
8 |
O-RING SENSOR OF POSITION DE BOX OEM APRILIA 660 RS, TUONO, TUAREG 2020 >/1000-1100 RSV4 2017 >/MOTO GUZZI V85, V100 2021 > 857494 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
9 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 2 |
|||||||||
|
10 |
|
|||||||||
|
11 |
|
|||||||||
|
12 |
1A013659 SHAFT RETAINING PLATE More informationQuantity required : 1 |
|||||||||
|
13 |
874599-FORK More informationQuantity required : 1 |
|||||||||
|
14 |
849360-FOURCHETTE More informationQuantity required : 2 |
|||||||||
|
15 |
873772-ROD More informationQuantity required : 2 |
|||||||||
|
16 |
2D000300 - DETECTEUR More informationQuantity required : 1 |
|||||||||
