Vehicle Exploded View - APRILIA RS 660 4T 8V E5 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

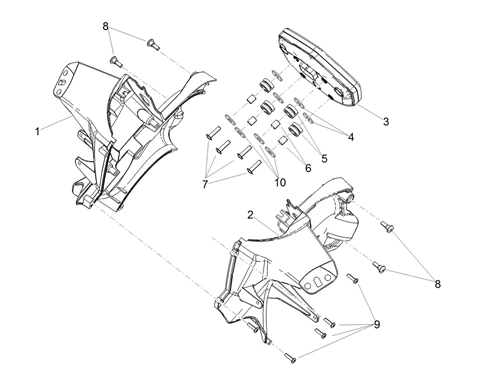

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/961/RS_660_4T_8V_E5_ABS_2020_(EMEA)_08.02.png)
1 |
2B005416 - RH DASHBOARD SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
2B005417 - LH DASHBOARD SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/5/7/img/171657.jpg)
3 |
INSTRUMENT CLUSTER OEM APRILIA 660 RS, TUONO 2020-2023-2D000554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
4 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
5 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
6 |
SPACER (14X10X6. 6) OEM COMMON A LA RANGE PIAGGIO/APRILIA-AP8221017 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
7 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
9 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
10 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 3 |
