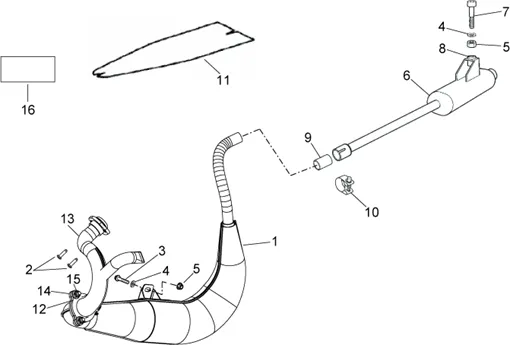

Chassis : 28.15 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/769/RS_50_2006-2010_28.15.PNG)
1 |
861414 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
1 |
863785 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
2 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
|
3 |
00006082000 - VIS More informationQuantity required : 1 |
||||||
|
4 |
00G01500171-BOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
5 |
NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022 More informationQuantity required : 2 |
||||||
|
6 |
SILENCIEUX DIECHAPPEMENT |
||||||
|
6 |
863763 - SILENCIEUX DIECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
7 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500 More informationQuantity required : 1 |
||||||
|
7 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500 More informationQuantity required : 1 |
||||||
|
8 |
00H02201731-RUBBER MOUNT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/4/img/64794.jpg)
9 |
EXHAUST GASKET- FROM PIPE TO SILENCER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010, 125 SC -00H03405321- More informationQuantity required : 1 |
||||||
|
10 |
851470-CLAMP More informationQuantity required : 1 |
||||||
|
10 |
00H03802461-FLANGE More informationQuantity required : 1 |
||||||
|
11 |
00H06300901 - ADHESIF More informationQuantity required : 1 |
||||||
|
12 |
JOINT |
||||||
|
13 |
865092 - POT D'ECHAPPEMENT CPL. More informationQuantity required : 1 |
||||||
|
14 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 3 |
||||||
|
16 |
00G05100911-TROUSSE A OUTILS More informationQuantity required : 1 |
