Vehicle Exploded View - APRILIA RS 50 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

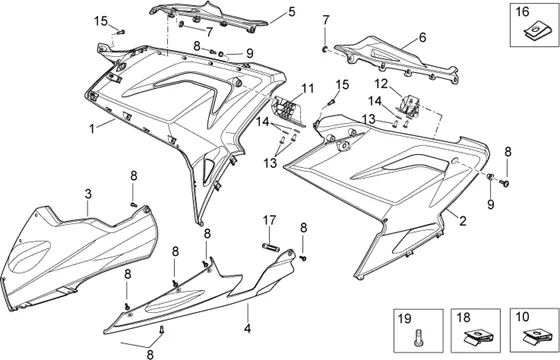

Chassis : 28.08 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/769/RS_50_2006-2010_28.08.PNG)
1 |
COVER LATERAL FRONT RIGHT OEM PIAGGIO APRILIA 50 RS 2006 > 2010 UNPAINTED READY TO PAINT-R861555 More informationQuantity required : 1 |
||||||
|
1 |
86511200WB05 - FLANC LAT.SUP.DRT More informationQuantity required : 1 |
||||||
|
1 |
86511200WN05 - FLANC LAT.SUP.DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/4/img/72124.jpg)
1 |
RIGHT SIDE PANEL"PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 WHITE -AP8184760 More informationQuantity required : 1 |
||||||
|
1 |
86552900WN05 - FLANC LAT.DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/5/4/img/41254.jpg)
1 |
SIDE PANEL FAIRING RIGHT OEM PIAGGIO APRILIA 50 RS 2006 > 2010 WHITE GLAM-86704100WB25 More informationQuantity required : 1 |
||||||
|
1 |
86720300WB05 - AILE D More informationQuantity required : 1 |
||||||
|
2 |
FRONT LEFT SIDE PANEL "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 RAW TO BE PAINT -R861556- More informationQuantity required : 1 |
||||||
|
2 |
86511300WB05 - FLANC LAT.SUP.GAU More informationQuantity required : 1 |
||||||
|
2 |
86553100WR05 - AILE G More informationQuantity required : 1 |
||||||
|
2 |
86663400WN05 - FLANC. SUP. GAUCHE NOIR RS SBK 09 More informationQuantity required : 1 |
||||||
|
2 |
UPPER SIDE PANEL - LEFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 WHITE GLAM -86704200WB25 More informationQuantity required : 1 |
||||||
|
2 |
86720400WB05 - AILE G More informationQuantity required : 1 |
||||||
|
2 |
AP8184761 - FLANC. SUP. GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
86142500W2G5 - CARENAGE INF.DR. More informationQuantity required : 1 |
||||||
|
3 |
86303400W2G5 - CARENAGE INF.DR. More informationQuantity required : 1 |
||||||
|
3 |
86511400W3R - FLANC D, ROUGE More informationQuantity required : 1 |
||||||
|
3 |
FLANC INF.DROITE |
||||||
|
3 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 WHITE GLAM -86704300W0N5- More informationQuantity required : 1 |
||||||
|
3 |
86720500W3R5 - FLANC D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/5/7/img/41257.jpg)
4 |
LEFT SPOILER- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 WHITE GLAM -86704400W0N5 More informationQuantity required : 1 |
||||||
|
4 |
86720600W3R5 - FLANC G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/6/9/img/69869.jpg)
4 |
LEFT SPOILER- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 BLACK DIABLO -86142600W2G5 More informationQuantity required : 1 |
||||||
|
4 |
86303500W2G5 - CARENAGE INF.GAU More informationQuantity required : 1 |
||||||
|
4 |
86511500W0R - FLANC G, ROUGE More informationQuantity required : 1 |
||||||
|
4 |
86511500W3R - FLANC G, ROUGE More informationQuantity required : 1 |
||||||
|
4 |
86663600W3R - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
00H04402971-COVER SUP. DRO. More informationQuantity required : 1 |
||||||
|
6 |
00H04402981-COVER SUP. GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
7 |
WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
8 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
9 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
10 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 12 |
||||||
|
11 |
00H02205461-BRACKET More informationQuantity required : 1 |
||||||
|
12 |
00H05906521-BRACKET GAU. More informationQuantity required : 1 |
||||||
|
13 |
00000011416-SCREW TARAUD T. RONDE CROIX 4, 8X1 More informationQuantity required : 4 |
||||||
|
14 |
00031105000-WASHER PLATE M5 DIN125 More informationQuantity required : 4 |
||||||
|
15 |
00011041600-SCREW AUTO. 4, 2X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
16 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
|
17 |
861037 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/3/img/65033.jpg)
19 |
SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861 More informationQuantity required : 1 |
