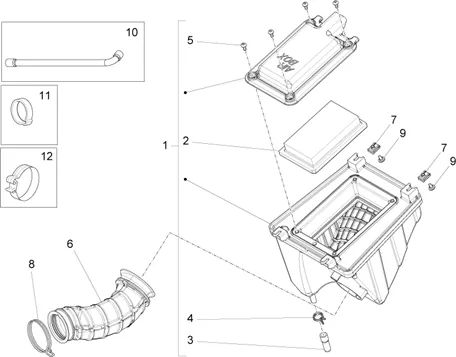

Moteur : 03.050 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/818/RS_125_Replica_4T_E4_ABS_2017_-_2018_(EMEA)_03.050.png)
1 |
898054-BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/0/img/69840_20260205164724.jpg)
2 |
ELEMENT/MOUSSE DE AIR FILTER OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >, 125 RX, SX 2018 >-861130 More informationQuantity required : 1 |
||||||
|
3 |
862403-BUFFER More informationQuantity required : 1 |
||||||
|
4 |
862404-ABRAZAD. MUELLE REF. MIKALOR 201615 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
5 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 4 |
||||||
|
6 |
898056 - DURITE D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
8 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
9 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 4 |
||||||
|
10 |
863320-TUBO DESVAPORIZADOR MUL125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/0/img/71200.jpg)
11 |
CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
12 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 2 |
