Vehicle Exploded View - APRILIA RS 125 Replica 4T E4 ABS 2017 - 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

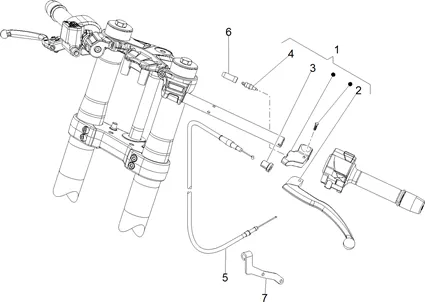

Guidon - commandes : 07.030 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/818/RS_125_Replica_4T_E4_ABS_2017_-_2018_(EMEA)_07.030.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/4/6/img/70146.jpg)
1 |
LEVER CLUTCH OEM PIAGGIO APRILIA 125 RS4-865951 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/3/8/img/64338.jpg)
2 |
LEVER CLUTCH OEM PIAGGIO APRILIA 50-125 RS 2011 >-00H00904291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/2/5/img/64325.jpg)
3 |
HOLLOW TENSIONER SCREW OF CABLE CLUTCH OEM 50 GILERA SMT, RCR 2006/DERBI 50 SENDA 2000 > 2005/APRILIA 50 RX, SX 2006-2013 (M7 GAINE 9 MM)-00H00900351 More informationQuantity required : 1 |
||||||
4 |
2R000321-INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/3/2/img/70132.jpg)
5 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO 125 RS APRILIA 2011 > 2018-865646 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
6 |
RUBBER CONTACTEUR DE STOP OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >-AP8220135 More informationQuantity required : 1 |
||||||
|
7 |
873566-BUTEE DE BEARING More informationQuantity required : 1 |
