Vehicle Exploded View - APRILIA RS 125 GP Replica E5+ ABS 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

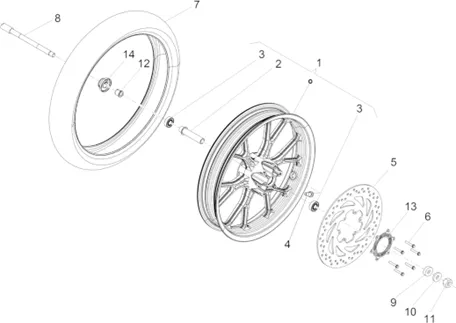

Roues : 05.01 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1337/RS_125_GP_Replica_E5_ABS_2025_05.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/5/4/img/64454.jpg)
1 |
RIM/FRONT WHEEL BLACK 17 ¨ OEM APRILIA 50-125 RS, TUONO 2011 >-00H01212841 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/6/img/64436.jpg)
2 |
SPACER INTERNE FRONT WHEEL OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2010 >-00H01205031 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
3 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/3/img/70153_20260526172823.jpg)
5 |
BRAKE DISC FRONT OEM PIAGGIO APRILIA 125 RS4 2011 >, TUONO 2017 >, 50 RS4 2011 >-866090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
6 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 6 |
||||||
7 |
2B005544-TYRE FRONT 100/80-17 M/C 52S F TL/TT More informationQuantity required : 1 |
||||||
|
7 |
2B014732-TYRE FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/3/1/img/69931.jpg)
8 |
WHEEL SPINDLE FRONT OEM PIAGGIO APRILIA 50-125 RS4 2011 >-86190R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/2/img/64432.jpg)
9 |
00H01203291-SPACER REAR WHEEL COTE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
10 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
11 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 1 |
||||||
|
12 |
2B003229-SPACER More informationQuantity required : 1 |
||||||
|
13 |
2B002059-CODEUR INSTRUMENT CLUSTER More informationQuantity required : 1 |
||||||
|
14 |
2B003160-COVER More informationQuantity required : 1 |
