Vehicle Exploded View - APRILIA RS 125 GP Replica E5+ ABS 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

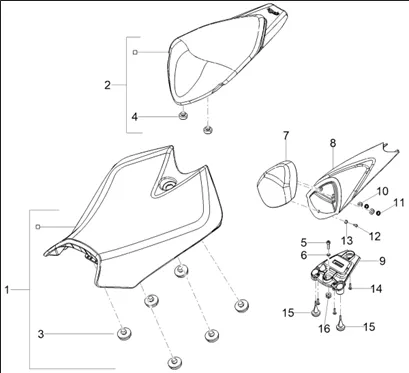

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1337/RS_125_GP_Replica_E5_ABS_2025_02.12.png)
1 |
89912000C4 SADDLE ASSEMBLY SKAY NERO 991 PRISMA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/5/0/img/108950.jpg)
2 |
SEAT PASSENGER OEM PIAGGIO APRILIA 50-125 RS 2011 >, RSV-4 2009 >, 1100 TUONO 2015 >-85884300A1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
3 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/1/0/8/img/101108.jpg)
4 |
RUBBER BUFFER DE SEAT (9. 5X20) OEM PIAGGIO COMMON A LA RANGE-B063429 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
5 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
6 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 1 |
||||||
|
7 |
2B009746-SADDLE COVER PILLOW More informationQuantity required : 1 |
||||||
|
8 |
858837-COVER-SEAT More informationQuantity required : 1 |
||||||
|
8 |
85883700XN5-COVER-SEAT, BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/3/img/40603.jpg)
9 |
BASE COVER-SEAT OEM APRILIA 50-125 RS 2011 >-858838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
10 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
11 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
12 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
13 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
14 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
15 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/6/3/img/41963.jpg)
16 |
PIVOT MOUNTING OEM APRILIA COMMON A LA RANGE-893259 More informationQuantity required : 1 |
