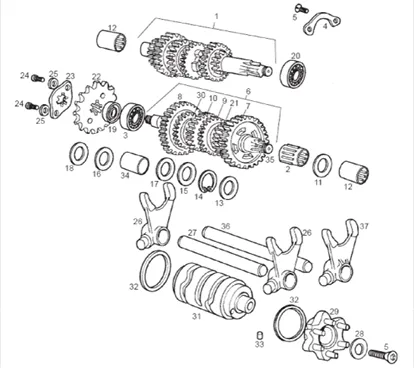

Vehicle Exploded View - GILERA RCR 50 2011

	P2R reference	69417
	Maker reference	847027

SHAFT PRIMAIRE BOX OF SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX, RS 2011 >-847027

	P2R reference	69526
	Maker reference	847544

CAGE A AIGUILLES (8X15X18) SHAFT SECONDAIRE BOX OF VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847544

	P2R reference	205929
	Maker reference	8470866

BEARING (17X40X12) SHAFT SECONDAIRE BOX OF VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 > APRILIA SX, RX, RS 2006 >-8470866

	P2R reference	205929
	Maker reference	847086

BEARING (17X40X12) SHAFT SECONDAIRE BOX OF VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 > APRILIA SX, RX, RS 2006 >-8470866

	P2R reference	69414
	Maker reference	847021

PLATE MAINTIEN BEARING BOX OF SPEED OEM PIAGGIO 50 GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2006 >-847021

	P2R reference	127169
	Maker reference	1A003116

SCREW BTR HEAD FRAISEE (5X10) BOX OF SPEED OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX, RS-1A003116

	P2R reference	69418
	Maker reference	847028

SHAFT DE BOX OF SPEED SECONDAIRE COMPLETE OEM DERBI 50 SENDA 2006 >/APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR 2006 >-847028

	P2R reference	69468
	Maker reference	847153

GEAR 1EME OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847153

	P2R reference	69472
	Maker reference	847157

GEAR 2EME OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847157

	P2R reference	69470
	Maker reference	847155

GEAR 3EME OEM DERBI 50 SENDA 2005 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX 2006 >, RX 2006 >, RS 2006 > 2010, RS-4 2011 >-847155

	P2R reference	69471
	Maker reference	847156

GEAR 4EME OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX, RS-847156

	P2R reference	69531
	Maker reference	847549

WASHER SHAFT SECONDAIRE BV OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA/APRILIA RS, SX, RX-847549

	P2R reference	69485
	Maker reference	847211

CAGE A AIGUILLES SHAFT SECONDAIRE BV OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-847211

	P2R reference	146216
	Maker reference	871708

871708 - RONDELLE

	P2R reference	69525
	Maker reference	847542

CIRCLIPS BOX OF SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847542

	P2R reference	69530
	Maker reference	847548

WASHER (16X23. 5X1) BOX OF SPEED OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT 2006 >

	P2R reference	69524
	Maker reference	847541

WASHER (18X23X1) OEM PIAGGIO COMMON A LA RANGE-847541

	P2R reference	69528
	Maker reference	847546

WASHER PLATE (17, 1X25X0, 8) OEM PIAGGIO COMMON A LA RANGE-847546

	P2R reference	69527
	Maker reference	847545

WASHER SHAFT SECONDAIRE (1, 2X17X28) OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO-847545

	P2R reference	69412
	Maker reference	847019

GASKET SORTIE DE BOX (35X16X7) OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RX, SX, RS 2006 >-847019

	P2R reference	69483
	Maker reference	847209

BEARING (17X40X12) SHAFT PRIMAIRE BV OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS, RX, SX 2006 >-847209

	P2R reference	69469
	Maker reference	847154

GEAR 5EME OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX, RS-847154

	P2R reference	69922
	Maker reference	86177R

SPROCKET 11 TEETH OEM PIAGGIO 50 GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS 2006 >, RS4 2011 >, RX 2006 >, SX 2006 >-86177R

	P2R reference	64732
	Maker reference	00H02800421

WASHER DE SECURITE/PLATE MAINTIEN DE SPROCKET 50 A BOX OEM PIAGGIO 50 A BOX GILERA RCR, SMT 2006 >/APRILIA 50 RS4 2011 >, RS, RX, SX 2006 >-00H02800421

	P2R reference	71910
	Maker reference	AP8152043

SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043

	P2R reference	71870
	Maker reference	AP8150376

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

	P2R reference	68935
	Maker reference	83073R

FOURCHETTE BOX OF SPEED 2EME OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >, 125 RX, SX 2018 >, RS4 2011 >, TUONO 2017 >-83073R

	P2R reference	69420
	Maker reference	847030

SHAFT OF FOURCHETTE DE BOX OF SPEED OEM DERBI 50 SENDA 2005 >/GILERA SMT 2006 >/APRILIA RS, RX, SX 2006 >-847030

	P2R reference	69487
	Maker reference	847214

WASHER TAMBOUR DE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006 >/APRILIA SX, RX, RS-847214

	P2R reference	69423
	Maker reference	847038

WHEEL DE SELECTION CHANGEMENT DE SPEED OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 >, RS4 2011 >-847038

	P2R reference	69998
	Maker reference	863136

863136 - AXE A CAMES

	P2R reference	69473
	Maker reference	847158

GEAR 6EME OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847158

	P2R reference	92862
	Maker reference	83066R

TAMBOUR DE SELECTION DE SPEED OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA DRD 2010 > 2017/APRILIA SX, RX 2011 >-83066R

	P2R reference	69422
	Maker reference	847036

WASHER DE TAMBOUR DE SELECTION DE SPEED OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS 2006 >-847036

	P2R reference	69486
	Maker reference	847213

SPINDLE ROLLER DE CONTROL SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847213

	P2R reference	69529
	Maker reference	847547

BUSH/BUSH BOX OF SPEED OEM DERBI 50 SENDA 2005 >/GILERA 50 SMT-847547

	P2R reference	69474
	Maker reference	847159

SHAFT SECONDAIRE BOX OF SPEED OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX-847159

	P2R reference	69419
	Maker reference	847029

SHAFT OF FOURCHETTE CHANGEMENT DE 1ERE SPEED OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RX 2006 >, SX 2006-847029

	P2R reference	68934
	Maker reference	83072R

FOURCHETTE BOX OF SPEED 1EME OEM PIAGGIO 50 GILERA SMT 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >, 125 RX, SX 2018 >, RS4 2011 >, TUONO 2017 >-83072R
