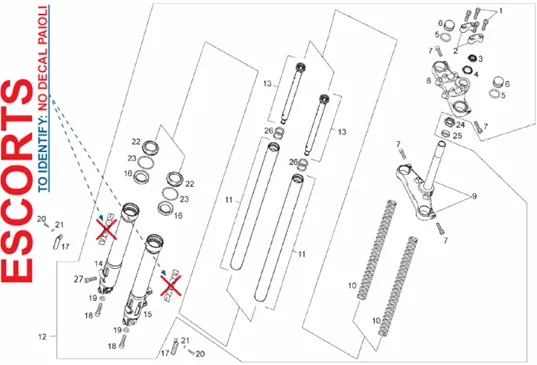

Vehicle Exploded View - GILERA RCR 50 2011

	P2R reference	70198
	Maker reference	866582

SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-866582

	P2R reference	70195
	Maker reference	866579

CAVALIER DE HANDLEBAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 > 2017/DERBI SENDA 2010 > 2017-866579

	P2R reference	70193
	Maker reference	866577

CAP/PROTECTOR POUSSIERE NUT DE FORK OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-866577

	P2R reference	70194
	Maker reference	866578

NUT PLATINE SUPERIEURE DE FORK OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2011 >-866578

	P2R reference	70200
	Maker reference	866584

GASKET OF CAP DE TUBE DE FORK (CONVIENT FOR TUBE 158767) OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX 2018 >-866584

	P2R reference	70199
	Maker reference	866583

CAP DE TUBE DE FORK (CONVIENT FOR TUBE 158767) OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX 2018 >-866583

	P2R reference	70198
	Maker reference	866582

SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-866582

	P2R reference	70196
	Maker reference	866580

UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866580

	P2R reference	70197
	Maker reference	866581

TE DE FORK LOWER OEM DERBI 50 SENDA 2010 > 2017/GILERA 50 SMT, RCR 2011 > 2017-866581

	P2R reference	70208
	Maker reference	866596

FORK SPRING OEM DERBI 50 X TREM 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-866596

	P2R reference	70207
	Maker reference	866593

TUBE DE FORK (D37) OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >-866593

	P2R reference	70262
	Maker reference	2B000664R

FORK 50 A BOX (LIVRE WITHOUT PLATE SUPERIEURE) OEM PIAGGIO 50 SMT, RCR GILERA/SENDA R, SM DERBI X-TREME 2011 > 2017-2B000664R

	P2R reference	70209
	Maker reference	866597

866597-CTO HIDRAULICO SDA-SM

	P2R reference	70313
	Maker reference	867270

FOURREAU DE FORK RIGHT OEM PIAGGIO GILERA 50 SMT, RCR 2011 > 2017-867270

	P2R reference	70312
	Maker reference	867269

FOURREAU DE FORK LEFT OEM PIAGGIO GILERA 50 SMT, RCR 2011 > 2017-867269

	P2R reference	70206
	Maker reference	866592

OIL SEAL (37X49X8/10) DE FORK OEM DERBI SENDA 2007 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-866592

	P2R reference	64616
	Maker reference	00H01802081

CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081

	P2R reference	70201
	Maker reference	866586

SCREW BTR (D10) INFERIEURE DE FOURREAU DE FORK OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2018 >-866586

	P2R reference	70202
	Maker reference	866587

WASHER FORK INFERIEURE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 2010 >-866587

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	63726
	Maker reference	000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

	P2R reference	70204
	Maker reference	866590

PROTECTOR POUSSIERE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2010 >/APRILIA SX 2018 >-866590

	P2R reference	70205
	Maker reference	866591

ANNEAU/CLIPS DE FORK OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT 2011 >/APRILIA 50 SX 2018 >-866591

	P2R reference	63924
	Maker reference	00G00200112

NUT UPPER DE FORK OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00200112

	P2R reference	63868
	Maker reference	00D00200761

COVER POUSSIERE COLONNE STEERING OEM DERBI 50 SENDA 2010 > 2017/GILERA 50RCR, SMT 2006 > 2017-00D00200761

	P2R reference	70203
	Maker reference	866588

866588-ACELERADOR

	P2R reference	63652
	Maker reference	000041845005

SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500
