Vehicle Exploded View - GILERA RCR 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

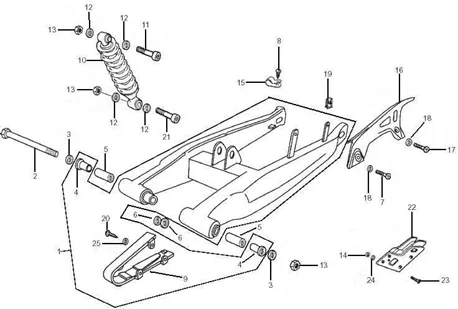

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/149/RCR_50_2006_04.10.PNG)
1 |
00H003089715 - BRAS OSCILLANT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/4/img/64484.jpg)
2 |
WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
3 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 4 |
||||||
|
3 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/0/img/63630.jpg)
4 |
SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017APRILIA 50 SX, RX 2006 > 2017-00002503230 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/7/img/64217.jpg)
5 |
SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00301401 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/9/img/63879.jpg)
6 |
WASHER PLATE D12 SPINDLE ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00D01300192 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/7/img/66547.jpg)
7 |
SCREW BTR (6X100) OEM PIAGGIO COMMON A LA RANGE-478171 More informationQuantity required : 8 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/0/img/64620.jpg)
9 |
PATIN DE CHAIN 50 A BOX OEM PIAGGIO GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX-RX 2006 >-00H01803331 More informationQuantity required : 4 |
||||||
|
10 |
REAR SHOCK ABSORBER OEM PIAGGIO 50 GILERA RCR 2006-00H01508191 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/3/0/img/64230.jpg)
11 |
SCREW TH (12X58) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00303892 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/3/img/63633.jpg)
12 |
WASHER PLATE (12X21X1) OEM PIAGGIO COMMON A LA RANGE-00003115422 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/6/img/63716.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
15 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/7/img/64557.jpg)
16 |
COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
17 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
18 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
20 |
SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/6/img/64216.jpg)
21 |
SCREW TH (12X45) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00300912 More informationQuantity required : 4 |
||||||
|
22 |
GUIDE CHAINE |
||||||
|
23 |
SCREW BTR (6X100) OEM PIAGGIO COMMON A LA RANGE-478171 More informationQuantity required : 1 |
||||||
|
24 |
031059 - BOULON S03105900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
25 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 4 |
