Vehicle Exploded View - GILERA RCR 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

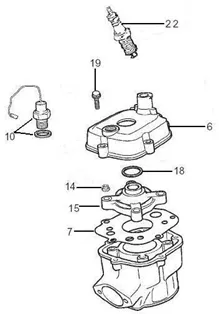

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/149/RCR_50_2006_01.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/9/img/73279.jpg)
6 |
COVER CYLINDER HEAD OEM DERBI 50 2006 > 2017/GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2017-CM1519024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/7/img/69407.jpg)
7 |
CYLINDER HEAD GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010/APRILIA 50 RS 2006>2010 -847009 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/0/img/70730.jpg)
10 |
SONDE DE TEMPERATURE WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA SX, RX 2006 >, RS 2006 >, RS4 2011 >-880325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
14 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/4/8/img/149148.jpg)
15 |
CYLINDER HEAD OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS 2006 >, RS4 2011, SX, RX 2006 >-1A0089765 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/8/3/4/img/156834.jpg)
18 |
O-RING COVER DE CYLINDER HEAD OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS 2006 >, RS4 2011 >-1A014908 More informationQuantity required : 1 |
||||||
|
18 |
O-RING COVER DE CYLINDER HEAD OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS 2006 >, RS4 2011 >-1A014908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
19 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
19 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
22 |
SPARK PLUG B8ES OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006 > 2010/MOTO-GUZZI V65, NEVADA, STRADA-847085 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
