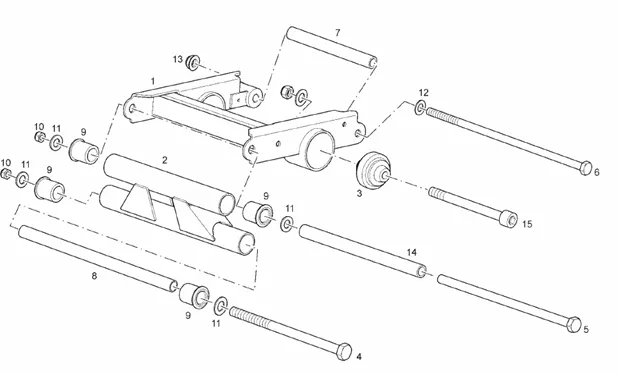

Vehicle Exploded View - DERBI RAMBLA 125 Rambla 125 2ver E3 2008 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 5 ENGINE SUPPORT
Engine support
Search
ENGINE CONNECTING ELEMENT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT CITY 2006>2012 -AP8235181

1
P2R reference P2R reference 72338
Maker reference Maker reference AP8235181

ENGINE CONNECTING ELEMENT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT CITY 2006>2012 -AP8235181

More information

Quantity required : 1

AP8235185 - BIELLETTA ATTACCO TELAIO

2
P2R reference P2R reference 72339
Maker reference Maker reference AP8235185

AP8235185-BIELLETTA ATTACCO TELAIO

More information

Quantity required : 1

AP8161155 - SILENT BLOCK

3
P2R reference P2R reference 72010
Maker reference Maker reference AP8161155

AP8161155-SILENT BLOCK *

More information

Quantity required : 1

AP8121191 - PERNO INCERNIERAMENTO TELAIO

4
P2R reference P2R reference 71444
Maker reference Maker reference AP8121191

AP8121191-PERNO INCERNIERAMENTO TELAIO

More information

Quantity required : 1

AP8161019 - PERNO INCERNIERAMENTO MOTORE

5
P2R reference P2R reference 72001
Maker reference Maker reference AP8161019

AP8161019-PERNO INCERNIERAMENTO MOTORE

More information

Quantity required : 1

AP8121192 - PERNO INCERNIERAMENTO MOTORE

6
P2R reference P2R reference 71445
Maker reference Maker reference AP8121192

AP8121192-PERNO INCERNIERAMENTO MOTORE

More information

Quantity required : 1

AP8121628 - ENTRETOISE

7
P2R reference P2R reference 71478
Maker reference Maker reference AP8121628

AP8121628-SPACER

More information

Quantity required : 1

AP8121190 - BUSSOLA BIELLETTA

8
P2R reference P2R reference 71443
Maker reference Maker reference AP8121190

AP8121190 - BUSSOLA BIELLETTA

More information

Quantity required : 1

AP8235186 - BUSSOLA BIELLETTA

9
P2R reference P2R reference 72340
Maker reference Maker reference AP8235186

AP8235186-BUSSOLA BIELLETTA

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432

10
P2R reference P2R reference 71884
Maker reference Maker reference AP8150432

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432

More information

Quantity required : 1

WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018

11
P2R reference P2R reference 71909
Maker reference Maker reference AP8152018

WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018

More information

Quantity required : 1

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

12
P2R reference P2R reference 71811
Maker reference Maker reference AP8150020

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

13
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

More information

Quantity required : 1

AP8161016 - BUSSOLA BIELLETTA

14
P2R reference P2R reference 72000
Maker reference Maker reference AP8161016

AP8161016-BUSSOLA BIELLETTA

More information

Quantity required : 1

SCREW BTR (12X90) OEM PIAGGIO COMMON A LA RANGE-AP8150554

15
P2R reference P2R reference 71906
Maker reference Maker reference AP8150554

SCREW BTR (12X90) OEM PIAGGIO COMMON A LA RANGE-AP8150554

More information

Quantity required : 1
