Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Primavera 50 4T 3V ie ABS E5 Mickey Mouse 2023
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

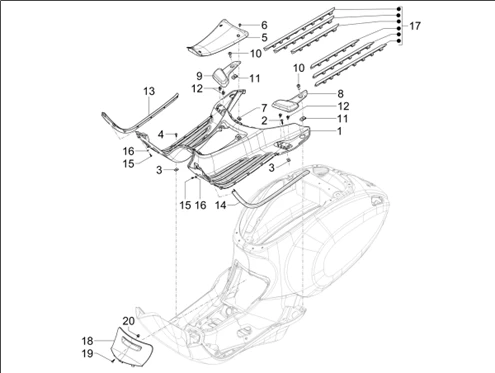

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1261/_Primavera_50_4T_3V_ie_ABS_E5_Mickey_Mouse_2023__02.31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/2/9/2/img/91292.jpg)
1 |
STEP FOOT/PLANCHER OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-673612 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/0/4/img/91304.jpg)
1 |
STEP FOOT/PLANCHER OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > RED 894-67361200R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/2/img/96282.jpg)
2 |
SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
3 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
4 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/4/8/img/91348.jpg)
5 |
COVER DE BATTERY OEM PIAGGIO 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673622 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
6 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/8/6/8/img/91868.jpg)
8 |
REST FEET PASSENGER LEFT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-675052000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/8/6/9/img/91869.jpg)
9 |
REST FEET PASSENGER RIGHT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-675053000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
10 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
12 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/7/0/img/91370.jpg)
13 |
BORDURE OF REST FOOT RIGHT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673641 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/9/img/91369.jpg)
14 |
BORDURE OF REST FOOT LEFT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
15 |
SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
16 |
WASHER PLATE (3. 8X9X0. 5) OEM PIAGGIO COMMON A LA RANGE-013836 More informationQuantity required : 14 |
||||||
17 |
6736235 - PROFIL MARCHE PIED (KIT) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/3/5/img/91335.jpg)
18 |
HATCH DE SPARK PLUG OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-673619 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/4/5/img/91345.jpg)
18 |
HATCH DE SPARK PLUG OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > RED 894-67361900R7 More informationQuantity required : 1 |
||||||
|
19 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
20 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 1 |
