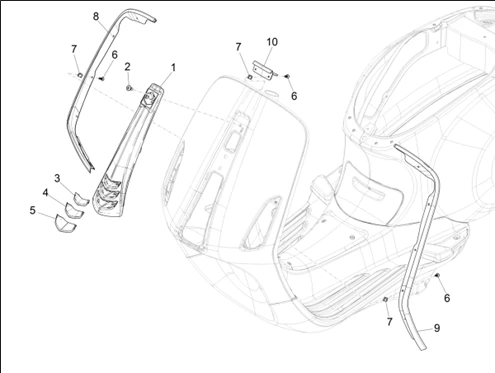

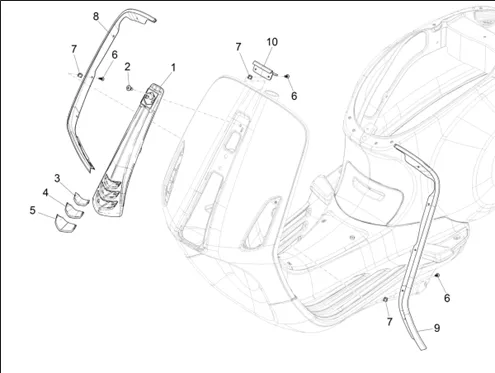

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Primavera 50 4T 3V ie ABS E5 Mickey Mouse 2023 VESPA

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-1B005209

1
P2R reference P2R reference 151327
Maker reference Maker reference 1B005209

COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-1B005209

More information

Quantity required : 1

COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > RED 894-1B005209000R7

1
P2R reference P2R reference 151330
Maker reference Maker reference 1B005209000R7

COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > RED 894-1B005209000R7

More information

Quantity required : 1

SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202

2
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202

More information

Quantity required : 1

ORNEMENT CHROME UPPER FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005290

3
P2R reference P2R reference 151333
Maker reference Maker reference 1B005290

ORNEMENT CHROME UPPER FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005290

More information

Quantity required : 1

ORNEMENT CHROME CENTRAL FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005291

4
P2R reference P2R reference 151335
Maker reference Maker reference 1B005291

ORNEMENT CHROME CENTRAL FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005291

More information

Quantity required : 1

ORNEMENT CHROME LOWER FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005292

5
P2R reference P2R reference 151337
Maker reference Maker reference 1B005292

ORNEMENT CHROME LOWER FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005292

More information

Quantity required : 1

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

6
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 14

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

7
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 14

BORDURE DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO VESPA 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673639

8
P2R reference P2R reference 91368
Maker reference Maker reference 673639

BORDURE DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO VESPA 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673639

More information

Quantity required : 1

BORDURE DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673638

9
P2R reference P2R reference 91367
Maker reference Maker reference 673638

BORDURE DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673638

More information

Quantity required : 1

BORDURE DE LEG SHIELD CENTRE CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-674145

10
P2R reference P2R reference 91577
Maker reference Maker reference 674145

BORDURE DE LEG SHIELD CENTRE CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-674145

More information

Quantity required : 1
