Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

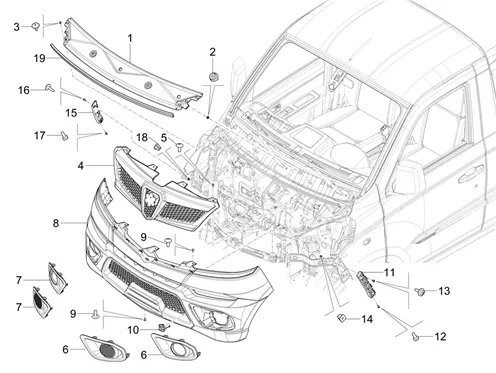

Châssis - plastiques : 05.02 CACHES AVANT - PARE-CHOC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/999/Porter_NP6_(TW_3250)_05.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/2/img/173482.jpg)
1 |
SURROUND SOUS WINDSCREEN OEM PIAGGIO PORTER NP6 2021 >-WL0531011303A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/2/8/img/173428.jpg)
2 |
RIVET A PRESSION OEM PIAGGIO PORTER NP6-W1B14861200034 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/3/img/173483.jpg)
3 |
RIVET A PRESSION OEM PIAGGIO PORTER NP6-WC3531010002A0 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/4/img/173484.jpg)
4 |
GRILLE/CALANDRE FRONT COMPLETE OEM PIAGGIO PORTER NP6 2021 >-WET531010100A0 More informationQuantity required : 1 |
||||||
5 |
WC3531021401A0 - VIS SPECIALE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/5/img/173485_20251107154551.jpg)
6 |
COVER LAMP DE BROUILLARD FRONT LEFT OEM PIAGGIO PORTER NP6 2021 > (TOP-HD)-WET531022200A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/6/img/173486.jpg)
6 |
COVER LAMP DE BROUILLARD FRONT LEFT OEM PIAGGIO PORTER NP6 2021 > (PLUS-START)-WET531021500A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/7/img/173487_20251107154555.jpg)
7 |
COVER LAMP DE BROUILLARD FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 > (TOP-HD)-WET531022300A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/8/img/173488.jpg)
7 |
COVER LAMP DE BROUILLARD FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 > (PLUS-START)-WET531021600A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/9/img/173489.jpg)
8 |
PROTECTOR-CHOCS FRONT OEM PIAGGIO PORTER NP6 2021 >-WET531020201A0 More informationQuantity required : 1 |
||||||
|
9 |
WC3531021401A0 - VIS SPECIALE More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/9/0/img/173490.jpg)
10 |
COVER BOLT A OEIL ON PROTECTOR CHOC FRONT OEM PIAGGIO PORTER NP6 2021 >-WET531021200A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/9/1/img/173491.jpg)
11 |
BRACKET LEFT PROTECTOR-CHOC FRONT OEM PIAGGIO PORTER NP6 2021 >-WET531020400A0 More informationQuantity required : 1 |
||||||
|
12 |
WQ230B0616F62 PAN HEAD SCERW AND FLAT WASHER More informationQuantity required : 1 |
||||||
|
13 |
WQ221B4819F62 PAN HEAD SCREW AND WIDE FLAT WASHER More informationQuantity required : 2 |
||||||
|
14 |
WL0531020800A0 CHEVILLE A EXPANSION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/9/5/img/173495.jpg)
15 |
BRACKET RIGHT PROTECTOR-CHOC FRONT OEM PIAGGIO PORTER NP6 2021 >-WET531020500A0 More informationQuantity required : 1 |
||||||
|
16 |
WL0531020800A0 CHEVILLE A EXPANSION More informationQuantity required : 2 |
||||||
|
17 |
WQ230B0616F62 PAN HEAD SCERW AND FLAT WASHER More informationQuantity required : 1 |
||||||
|
18 |
WQ221B4819F62 PAN HEAD SCREW AND WIDE FLAT WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/9/6/img/173496.jpg)
19 |
GASKET UPPER DE CAPOT FRONT OEM PIAGGIO PORTER NP6 2021 >-WC3660130001A0 More informationQuantity required : 1 |
