Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

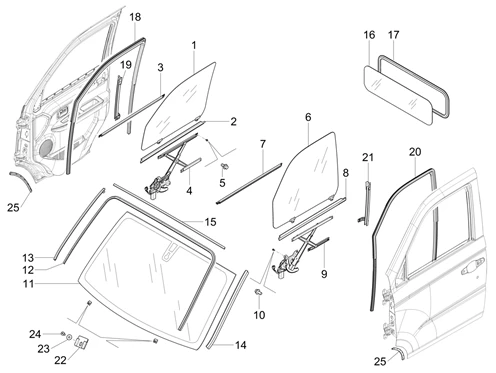

Châssis - carrosseries : 04.12 PARE-BRISE - GLACES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/999/Porter_NP6_(TW_3250)_04.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/8/6/img/173386.jpg)
1 |
VITRE DOOR FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 >-WET610131600A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/8/7/img/173387.jpg)
2 |
GASKET VITRE INNER FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 >-WC3610130108A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/8/8/img/173388.jpg)
3 |
GASKET VITRE EXTERIEUR FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 >-WC3610130006A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/8/9/img/173389.jpg)
4 |
LEVE VITRE RIGHT ELECTRIC OEM PIAGGIO PORTER NP6 2021 >-WL0610141203A0 More informationQuantity required : 1 |
||||||
5 |
WQ1800612F62 SCREW WITH FLANGE DENTEE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/1/img/173391.jpg)
6 |
VITRE DOOR FRONT LEFT OEM PIAGGIO PORTER NP6 2021 >-WET610131500A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/2/img/173392.jpg)
7 |
GASKET VITRE INNER FRONT LEFT OEM PIAGGIO PORTER NP6 2021 >-WC3610130107A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/3/img/173393.jpg)
8 |
GASKET VITRE EXTERIEUR FRONT LEFT OEM PIAGGIO PORTER NP6 2021 >-WC3610130005A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/4/img/173394.jpg)
9 |
LEVE VITRE LEFT ELECTRIC OEM PIAGGIO PORTER NP6 2021 >-WL0610140702A0 More informationQuantity required : 1 |
||||||
|
10 |
WQ1800612F62 SCREW WITH FLANGE DENTEE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/5/img/173395.jpg)
11 |
WINDSCREEN OEM PIAGGIO PORTER NP6 2021 >-WET521010100A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/6/img/173396.jpg)
12 |
GASKET INTERNE PROTECTOR-SCREEN OEM PIAGGIO NP6 2021 >-WC3521020004A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/7/img/173397.jpg)
13 |
GASKET LATERAL LEFT PROTECTOR-SCREEN OEM PIAGGIO PORTER NP6 2021 >-WC3521020002A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/8/img/173398.jpg)
14 |
GASKET LATERAL RIGHT PROTECTOR-SCREEN OEM PIAGGIO NP6 2021 >-WC3521020003A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/9/9/img/173399.jpg)
15 |
GASKET UPPER EXTERNE PROTECTOR-SCREEN OEM PIAGGIO PORTER NP6 2021 >-WET521020500A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/0/img/173400.jpg)
16 |
LUNETTE REAR OEM PIAGGIO PORTER NP6 2021 >-WET521030100A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/1/img/173401.jpg)
17 |
GASKET LUNETTE REAR OEM PIAGGIO PORTER NP6 2021 >-WL0531030005A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/2/img/173402.jpg)
18 |
GASKET VITRE DOOR FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 >-WC3610130004A0 More informationQuantity required : 1 |
||||||
|
19 |
WL0610252303A0 RH FRONT DOOR GLASS REAR GUIDE RAIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/4/img/173404.jpg)
20 |
GASKET VITRE DOOR FRONT LEFT OEM PIAGGIO PORTER NP6 2021 >-WC3610130003A0 More informationQuantity required : 1 |
||||||
|
21 |
WL0610252203A0 LEFT FRONT DOOR GLASS REAR GUIDE RAIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/6/img/173406.jpg)
22 |
BIRIDE MOUNTING WINDSCREEN OEM PORTER NP6 2021 >-WC3521010001A0 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/7/img/173407.JPG)
23 |
WQ2140512F62 CROSS RECESSED PAN HEAD SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/0/8/img/173408.JPG)
24 |
WQ402B05T28F62 WASHER More informationQuantity required : 2 |
||||||
|
25 |
WC3610130011A0 FRONT DOOR SUB-SEALING STRIP ASSEMBLY More informationQuantity required : 2 |
