Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) M.Y. 2022 PIAGGIO VU

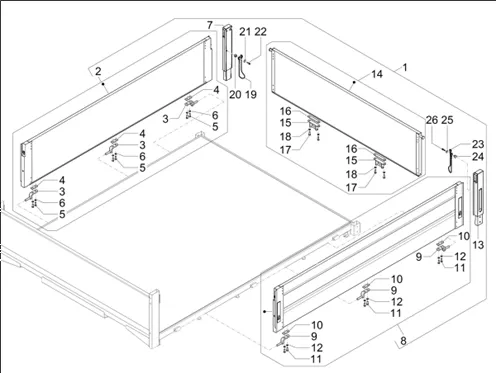

07_châssis - système de basculement : 07.05_01 05_01_RIDELLES BENNE (COURT)
05_01_Ridelles benne (court)
Search
CM317451 - SIDE PANEL RH

2
P2R reference P2R reference 173599
Maker reference Maker reference CM317451

RIDELLE RIGHT EN ALUMINIUM OEM PIAGGIO PORTER NP6 SW-CM317451

More information

Quantity required : 1

B000250 - PLATE

4
P2R reference P2R reference 173383
Maker reference Maker reference B000250

B000250 PLATE

More information

Quantity required : 3

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

5
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 6

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

6
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 6

CM317452 - SIDE PANEL LH

8
P2R reference P2R reference 173600
Maker reference Maker reference CM317452

CM317452 SIDE PANEL LH

More information

Quantity required : 1

B000250 - PLATE

10
P2R reference P2R reference 173383
Maker reference Maker reference B000250

B000250 PLATE

More information

Quantity required : 3

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

11
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 6

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

12
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 6

CM317461 - GATE ASSY REAR BODY TAIL

14
P2R reference P2R reference 173601
Maker reference Maker reference CM317461

CM317461 GATE ASSEMBLY REAR BODY TAIL

More information

Quantity required : 1

B007475 - CHARNIERE DE BORD

15
P2R reference P2R reference 115190
Maker reference Maker reference B007475

B007475 CHARNIERE DE EDGE

More information

Quantity required : 2

PLATE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B000224

16
P2R reference P2R reference 114334
Maker reference Maker reference B000224

PLATE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B000224

More information

Quantity required : 2

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

17
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 4

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

18
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 4

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

21
P2R reference P2R reference 65356
Maker reference Maker reference 0130925

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

22
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

25
P2R reference P2R reference 65356
Maker reference Maker reference 0130925

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

26
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1
