Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) M.Y. 2022 PIAGGIO VU

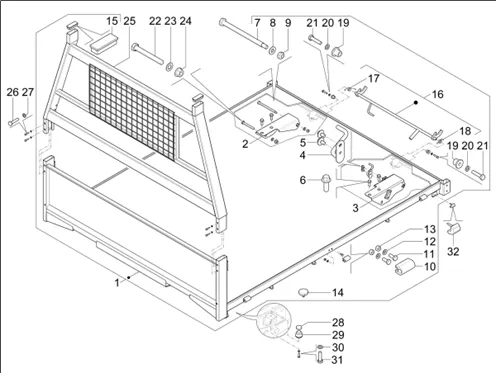

07_châssis - système de basculement : 07.04_01 04_01_PLATEAU ARRIÈRE (COURT)
04_01_Plateau arrière (court)
Search
CM288216 - VIS

5
P2R reference P2R reference 173598
Maker reference Maker reference CM288216

CM288216 SCREW

More information

Quantity required : 2

WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790

8
P2R reference P2R reference 65789
Maker reference Maker reference 178790

WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790

More information

Quantity required : 2

CHARNIERE DE EDGE OEM PIAGGIO PORTER MAXXI 2002 > 2020, NP6 2021 >-B000289

10
P2R reference P2R reference 114393
Maker reference Maker reference B000289

CHARNIERE DE EDGE OEM PIAGGIO PORTER MAXXI 2002 > 2020, NP6 2021 >-B000289

More information

Quantity required : 6

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

11
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 12

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

12
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 12

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

13
P2R reference P2R reference 65455
Maker reference Maker reference 0200085

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

More information

Quantity required : 12

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

20
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072

21
P2R reference P2R reference 65612
Maker reference Maker reference 0300725

SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072

More information

Quantity required : 2

2B006054 - VIS

22
P2R reference P2R reference 175872
Maker reference Maker reference 2B006054

2B006054 SCREW

More information

Quantity required : 2

WASHER ELASTIC COURBE (13X24X1. 2) OEM PIAGGIO COMMON A LA RANGE-006982

23
P2R reference P2R reference 73682
Maker reference Maker reference 0069825

WASHER ELASTIC COURBE (13X24X1. 2) OEM PIAGGIO COMMON A LA RANGE-006982

More information

Quantity required : 2

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

24
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 2

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

26
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 4

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

27
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 4

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

30
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-031122

31
P2R reference P2R reference 65649
Maker reference Maker reference 0311225

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-031122

More information

Quantity required : 2

567732 - TAMPON

32
P2R reference P2R reference 111110
Maker reference Maker reference 567732

567732 BUFFER

More information

Quantity required : 4
