Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

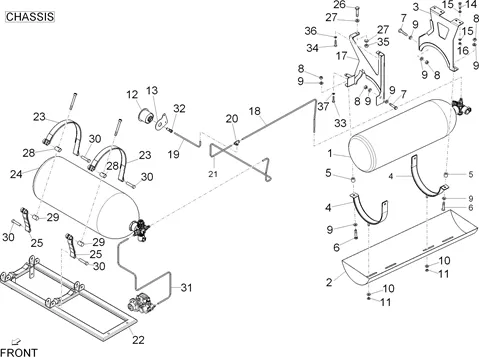

Méthane : 09.01 RÉSERVOIR CARBURANT MÉTHANE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/699/Porter_Maxxi_Multitech_E5_Plus_2014-2015_09.01.PNG)
1 |
B007936 RESERVOIRE GAS More informationQuantity required : 1 |
||||||
|
2 |
B007950 PROTECTOR RESERVOIRE More informationQuantity required : 1 |
||||||
|
3 |
B005723 BRACKET More informationQuantity required : 1 |
||||||
|
4 |
B005718 - SUPPORT RESERVOIRE More informationQuantity required : 2 |
||||||
|
4 |
B005721 BRACKET RESERVOIRE More informationQuantity required : 2 |
||||||
|
5 |
660652 SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
6 |
SCREW TH (10X45) OEM PIAGGIO COMMON A TOUTE LA RANGE-015578 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/1/img/65651.jpg)
7 |
SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
9 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/2/img/68492.jpg)
10 |
WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077 More informationQuantity required : 2 |
||||||
|
11 |
709052 NUT More informationQuantity required : 1 |
||||||
|
12 |
B007939 PRISE EN CHARGE More informationQuantity required : 1 |
||||||
|
13 |
B007952 BRACKET More informationQuantity required : 1 |
||||||
|
14 |
9165160625000 BOLT More informationQuantity required : 4 |
||||||
|
15 |
709056 WASHER More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 4 |
||||||
|
17 |
B007928 BRACKET More informationQuantity required : 1 |
||||||
|
18 |
B007946 HOSE GAS More informationQuantity required : 1 |
||||||
|
19 |
B007945 HOSE GAS More informationQuantity required : 1 |
||||||
|
20 |
B007955 FITTING More informationQuantity required : 1 |
||||||
|
20 |
B007949 FITTING D'ADMISSION More informationQuantity required : 1 |
||||||
|
21 |
B007947 HOSE GAS More informationQuantity required : 1 |
||||||
|
22 |
B007925 BRACKET More informationQuantity required : 1 |
||||||
|
23 |
B007929 TIGHTENING OF LA CEINTURE BOUTEILLES DE THROTTLE More informationQuantity required : 2 |
||||||
|
24 |
B007935 RESERVOIRE GAS More informationQuantity required : 1 |
||||||
|
25 |
BANDE DE SERRAGE BOUTEILLES DE THROTTLE (176. 5 MM) OEM PIAGGIO PORTER 2010 > 2020, NP6 2021 >-B007930 More informationQuantity required : 2 |
||||||
|
26 |
661075 SCREW More informationQuantity required : 1 |
||||||
|
27 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
28 |
B007932 TANK ROD FORÉS BANDE OF FITTING KIT More informationQuantity required : 2 |
||||||
|
29 |
B007933 FILETÉ ROD More informationQuantity required : 2 |
||||||
|
30 |
B007931 PIN BANDE OF FITTING KIT More informationQuantity required : 4 |
||||||
|
31 |
B007967 HOSE GAS More informationQuantity required : 1 |
||||||
|
33 |
030052-SCREW S03005200 More informationQuantity required : 1 |
||||||
|
34 |
9165160625000 BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/9/img/65599.jpg)
35 |
NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
36 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
37 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
