Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

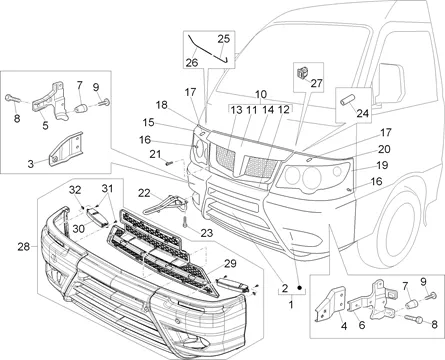

Châssis - parties plastiques - carrosseries : 02.30 PROTECTIONS AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/699/Porter_Maxxi_Multitech_E5_Plus_2014-2015_02.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/1/5/img/121415_20260929153402.jpg)
1 |
PROTECTOR CHOC FRONT OEM PIAGGIO PORTER 2009 > 2020-1E001096 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/5/6/img/117956.jpg)
2 |
GRILLE PROTECTOR CHOC FRONT OEM PIAGGIO PORTER 2009-2020-B004249 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/1/4/9/img/113149.jpg)
3 |
FLANGE BRACKET PROTECTOR-CHOCS FRONT RIGHT OEM PIAGGIO PORTER 2009 > 2020-B000833 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/1/4/7/img/113147.jpg)
4 |
FLANGE BRACKET PROTECTOR-CHOCS FRONT LEFT OEM PIAGGIO PORTER 2009 > 2020-B000835 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/9/2/img/114992.jpg)
5 |
BRACKET PROTECTOR-CHOCS FRONT RIGHT OEM PIAGGIO PORTER 1992 > 2020-5213387Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/0/5/5/img/115055.jpg)
6 |
BRACKET PROTECTOR CHOCS FRONT LEFT OEM PIAGGIO PORTER 1992 < 2020-5213487Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/2/2/img/110522.jpg)
7 |
CLIPS OEM PIAGGIO PORTER 2020 <-D9004468200 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
8 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/2/9/img/110329.jpg)
9 |
D9004159364 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/6/6/img/121366.jpg)
10 |
CALANDRE OEM PIAGGIO PORTER MULTITECK E4-E6-B000965 More informationQuantity required : 1 |
|||||||||
11 |
COVER UPPER CALANDRE OEM PIAGGIO PORTER 2010 > 2020-B000839 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/0/1/3/img/119013.jpg)
12 |
COVER LOWER CALANDRE OEM PIAGGIO PORTER 2010 > 2020-B000966 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/3/8/img/118038.jpg)
13 |
GRILLE FRONTAL PROTECTOR CHOC OEM PIAGGIO PORTER 2009 > 2020-B004250 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/9/1/img/114891.jpg)
14 |
PROTECTOR GRILLE OEM PIAGGIO PORTER 2009 > 2020-B000945 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/9/3/0/img/118930.jpg)
15 |
COVER DE HEADLAMP RIGHT OEM PIAGGIO PORTER 2009 > 2020-B000831 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/8/7/img/111387.jpg)
16 |
SPRING PROTECTOR FRONT OEM PIAGGIO PORTER 2009 > 2020-B000944 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/7/3/img/111073.jpg)
17 |
CLIPS DE CALANDRE OEM PIAGGIO PORTER 2010 > 2020-566300 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/2/8/img/114028.jpg)
18 |
PROTECTOR RIGHT BOUCLIER FRONT OEM PIAGGIO PORTER 2010 > 2020-B000836 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/9/6/1/img/118961.jpg)
19 |
COVER DE HEADLAMP LEFT OEM PIAGGIO PORTER-B000832 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/6/6/img/114066.jpg)
20 |
PROTECTOR LEFT BOUCLIER FRONT OEM PIAGGIO PORTER 2010 > 2020-B000949 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
21 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 4 |
|||||||||
|
22 |
CROCHET DE REMORQUAGE OEM PIAGGIO PORTER 2020 <-658987 More informationQuantity required : 1 |
|||||||||
|
23 |
BOULON |
|||||||||
|
24 |
B000985 HOSE More informationQuantity required : 2 |
|||||||||
|
25 |
B007162 COVER DE HEADLAMP LEFT More informationQuantity required : 1 |
|||||||||
|
26 |
B007163 COVER DE HEADLAMP RIGHT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/1/9/img/111919.jpg)
27 |
AGRAFE DE CALANDRE OEM PIAGGIO PORTER-566737 More informationQuantity required : 5 |
|||||||||
|
29 |
GRILLE PROTECTOR CHOC FRONT OEM PIAGGIO PORTER 2009-2020-B004249 More informationQuantity required : 1 |
|||||||||
|
31 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/5/6/img/111156.jpg)
32 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414 More informationQuantity required : 2 |
|||||||||
