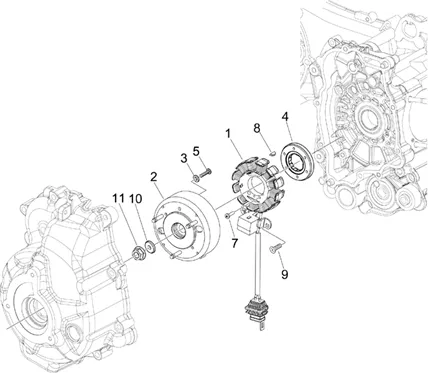

Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010 GILERA

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
IGNITION "PIAGGIO GENUINE PART" 250 X9 -58048R-

1
P2R reference P2R reference 67174
Maker reference Maker reference 58048R

IGNITION OEM PIAGGIO 250 X9, BEVERLY-58048R

More information

Quantity required : 1

IGNITION ROTOR "PIAGGIO GENUINE PART" 250 X9, BEVERLY/APRILIA 125-250 ATLANTIC -58049R

2
P2R reference P2R reference 67175
Maker reference Maker reference 58049R

IGNITION ROTOR "PIAGGIO GENUINE PART" 250 X9, BEVERLY/APRILIA 125-250 ATLANTIC -58049R

More information

Quantity required : 1

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

3
P2R reference P2R reference 66579
Maker reference Maker reference 479515

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

More information

Quantity required : 6

WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875

4
P2R reference P2R reference 149153
Maker reference Maker reference 1A0093875

WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875

More information

Quantity required : 1

SCREW BTR (10X25) OEM PIAGGIO COMMON A LA RANGE-840893

5
P2R reference P2R reference 69168
Maker reference Maker reference 840893

SCREW BTR (10X25) OEM PIAGGIO COMMON A LA RANGE-840893

More information

Quantity required : 6

122637 - VIS

6
P2R reference P2R reference 127165
Maker reference Maker reference 122637

SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-122637

More information

Quantity required : 3

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

8
P2R reference P2R reference 63674
Maker reference Maker reference 0000975

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

More information

Quantity required : 1

1A003111 - VIS M5X10

9
P2R reference P2R reference 109024
Maker reference Maker reference 0185755

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 4

1A003111 - VIS M5X10

9
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 4

WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385

10
P2R reference P2R reference 69229
Maker reference Maker reference 842385

WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385

More information

Quantity required : 1

842388 - ECROU

11
P2R reference P2R reference 163008
Maker reference Maker reference 842388

842388 - ECROU

More information

Quantity required : 1
