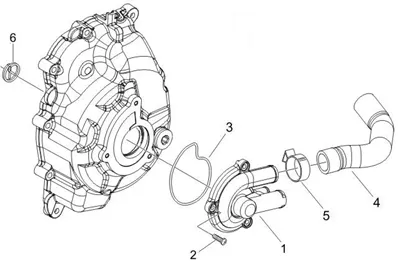

Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010 GILERA

Moteur : 01.19 POMPE À EAU
Pompe à eau
Search
COVER OF PUMP A WATER OEM PIAGGIO 125 X8, X9, VESPA GT, BEVERLY/GILERA 125 RUNNER/APRILIA 125 ATLANTIC, SCARABEO-486237

1
P2R reference P2R reference 66706
Maker reference Maker reference 486237

COVER OF PUMP A WATER OEM PIAGGIO 125 X8, X9, VESPA GT, BEVERLY/GILERA 125 RUNNER/APRILIA 125 ATLANTIC, SCARABEO-486237

More information

Quantity required : 1

SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

2
P2R reference P2R reference 68770
Maker reference Maker reference 828662

SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

More information

Quantity required : 3

O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080

3
P2R reference P2R reference 66671
Maker reference Maker reference 485080

O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080

More information

Quantity required : 1

840468 - TUYAU

4
P2R reference P2R reference 69146
Maker reference Maker reference 840468

840468 - TUYAU

More information

Quantity required : 1

CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908

5
P2R reference P2R reference 72869
Maker reference Maker reference CM001908

CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908

More information

Quantity required : 1

SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390

6
P2R reference P2R reference 69231
Maker reference Maker reference 842390

SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390

More information

Quantity required : 1
