Vehicle Exploded View - GILERA NEXUS 250 -SP-E3 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

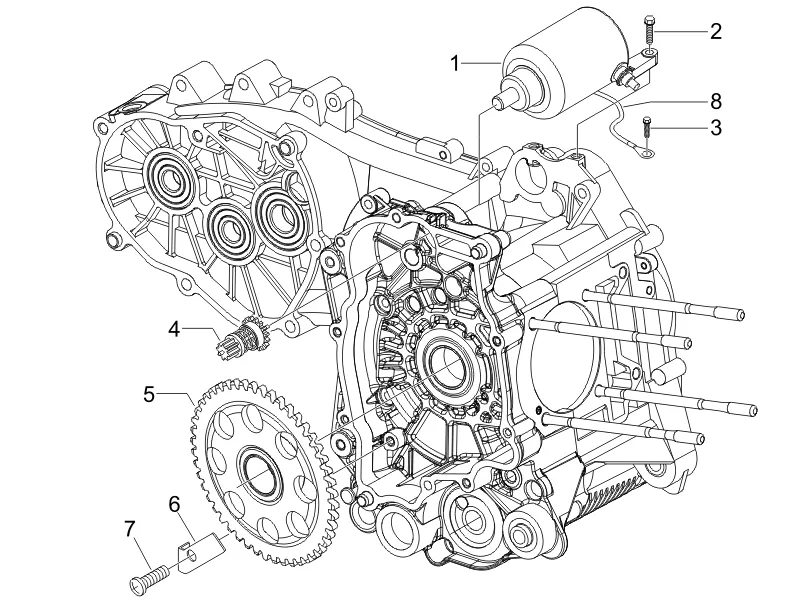

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/182/Nexus_250_-SP-_E3_2006-20-059.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/3/8/img/156038.jpg)
1 |
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/1/6/img/81716.jpg)
1 |
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY-58218R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
4 |
8427035 - ENSAMBLE RENVOI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
5 |
COURONNE DE STARTER MOTOR OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7, 125-250 X8, X9, X-EVO/GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-82737R More informationQuantity required : 1 |
||||||
|
6 |
848724 - PALQUE More informationQuantity required : 1 |
||||||
|
6 |
1A000235-PALQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
7 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 1 |
||||||
|
8 |
640012-CABLE FOR MOT. STARTER More informationQuantity required : 1 |
