Vehicle Exploded View - GILERA NEXUS 250 -SP-E3 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

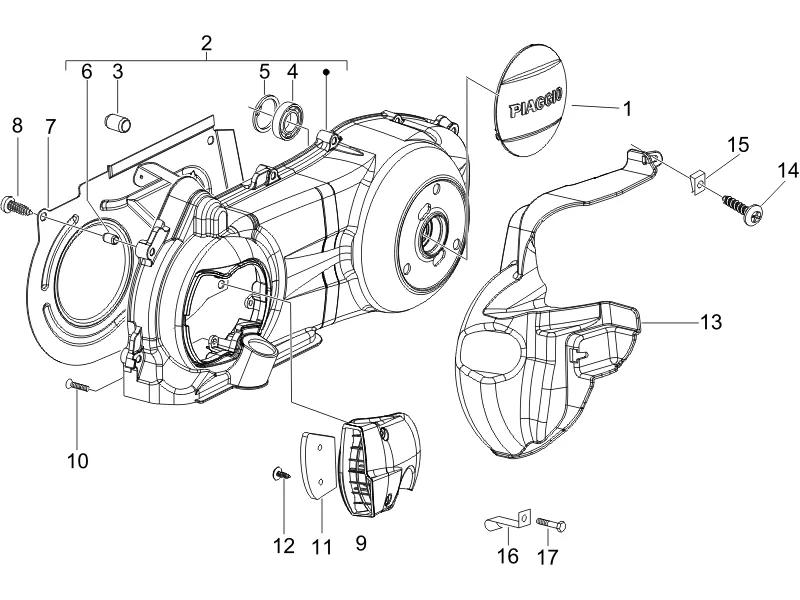

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/182/Nexus_250_-SP-_E3_2006-20-050.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/5/4/img/139454.jpg)
1 |
COVER ROND DE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-CM155110 More informationQuantity required : 1 |
||||||
2 |
8714725-COVER VARIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
3 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
4 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
5 |
CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635 More informationQuantity required : 1 |
||||||
|
7 |
834266-DIAPHRAGME FOR AIR CHAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
8 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 5 |
||||||
|
9 |
842090-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
10 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/3/img/69213.jpg)
11 |
AIR FILTER CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842093 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
12 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
18 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 7 |
||||||
|
20 |
834266-DIAPHRAGME FOR AIR CHAUD More informationQuantity required : 1 |
